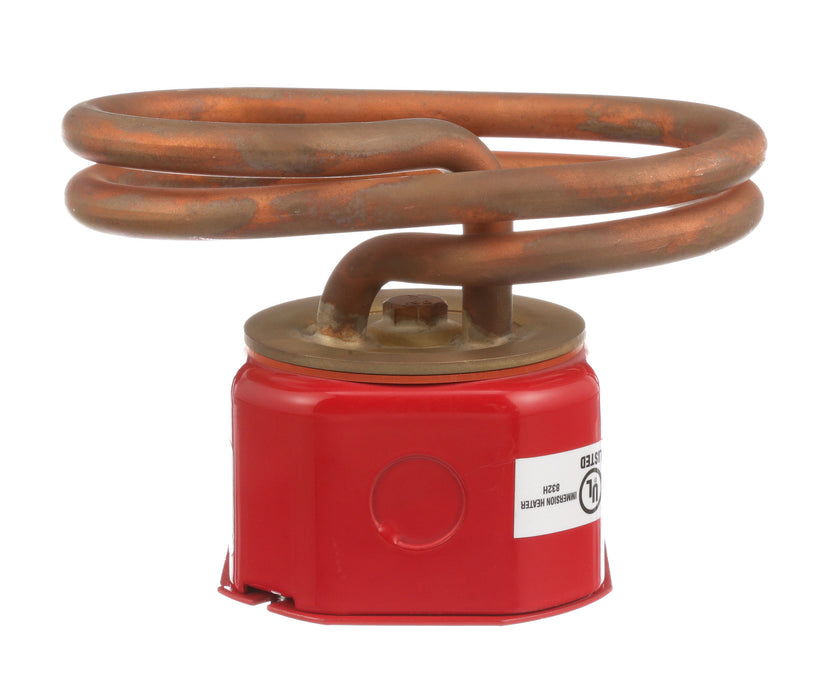

UCH-3021: 3,000 W @ 208 VAC, Single-phase, Copper Urn Heater (No Cutout)

Therm Coil Model No: UCH-3021       Therm Coil Drawing No.: 379C-3010-012

Product Description

• Copper urn heater for use in steam tables, coffee urns, kettles, and humidifiers.
• NOTE: 2" Minimum Liquid Depth
• 3,000W (3kW) @ 208VAC, Single-Phase (14.5A)
• Copper Sheath Elements
• Bottom Mounted

• Round Brass Flange
• General Purpose Enclosure
• Without Integral Thermal Cutout

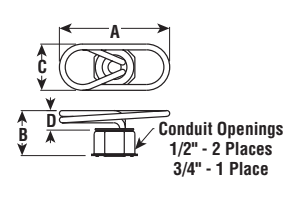

• Dimensions (See Diagram): 6-3/4" (A) x 4-9/16" (B) x 4-1/4" (C) x 2-5/16" (D)

• Model UCH-3021 Replaces: Therm Coil model series UC-3021 and model series UA-3021 (this includes models without thermal cutout).
• Equivalent To Part Numbers: Chromalox 272436, TTUH-30A (208V)

  NOTE - Product images may be of product in same series and not exact item - see Product Information above for exact specifications.

“Under the U.S. Federal Safe Drinking Water Act, it is unlawful to install or use this product in any service that comes into contact with water for human consumption (including drinking, food or beverage preparation, hand washing, or teeth brushing). This product is intended exclusively for use in non-potable service.”
