Therm Coil Drawing No.: 337T-2061-002

Therm Coil Model No: UT3001

TPI Model No.: UT3001

Features

• 50°-90° Cool-Only 3-Wire Thermostat For 24VAC
• With Fan and System Switches
• Fahrenheit and Celsius Temperature Scales

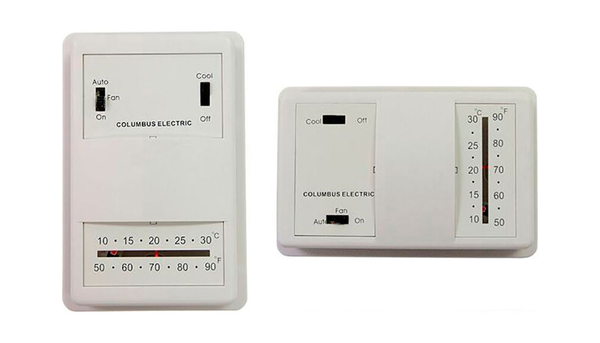

• Allows For Vertical or Horizontal Wall-Mounting
• Leveling Is Not Required
• Long-Life Sealed Contacts
• Does Not Contain Mercury
• Cool Anticipator

Specifications

• Range: 50° - 90°F Cool Only

• Temperature Scale: Celsius or Fahrenheit
• Rating: 24VAC, 1.0 Amp MAX.
• Switches: Cool/Off Fan/Auto

• Terminals: R, Y, & G

• Anticipator: Yes
• Differential: ±2-3°F

• Control: Analog

• Dimensions: 6" H x 4" W x 2" D
• Application: Indoor Residential and Commercial
• Approvals: U.L. Approved;  Compliant with RoHS2 Directive (2011/65/EU), that of which includes the application exemptions outlined in Annex III of the directive

Equivalent to Part Numbers:

TPI: UT3001

Columbus Electric: UT3001

Markel: UT3001





Disclaimers: TPI, Columbus Electric, and Markel are registered trademarks of TPI Corporation.Therm Coil MFG. Co. is not affiliated with any of the aforementioned trademark owners, manufacturers, or their subsidiaries or any other manufacturers mentioned
