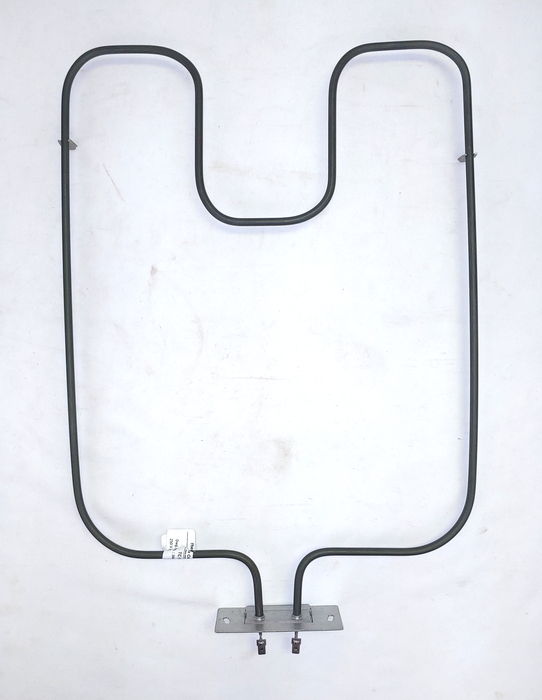

Model TC-979: Frigidaire 5309950887 Equivalent Range/Oven Bake Replacement Element, 2,700W @ 250V
Therm Coil Drawing No.: 366R-3063-003 Therm Coil Model No.: TC-979
Description
HELPFUL HINT: Use CTRL+F to use the search function for your part number.- Replacement For Part Numbers:
5309950887, CH979, 00632071, 00632073, 00632309, 00632310, 00632311, 00632312, 00634706, 00634707, 01133474, 01133600, 07525706, 07526607, 09950887, 09990003, 1133474, 1133600, 12908, 634706, 9950887, AH474712, EA474712, F83-449, F83-484, PS474712, B0038MGNXK, TJ90CH979, 454168, RP979, TS5820, TS5820/979, TS979, TS979/5820, YCH979, B003N6X94C, AP4502607, AP2591772
- 2700 W @ 250 V Rating
- Approximate Overall Size: 13-1/2" Width x 19-1/8" Back Of Element To Mounting Brackets x 1-1/8" Insert From Bracket To Terminal Ends x 1-1/4" Center-to-Center Terminal Width

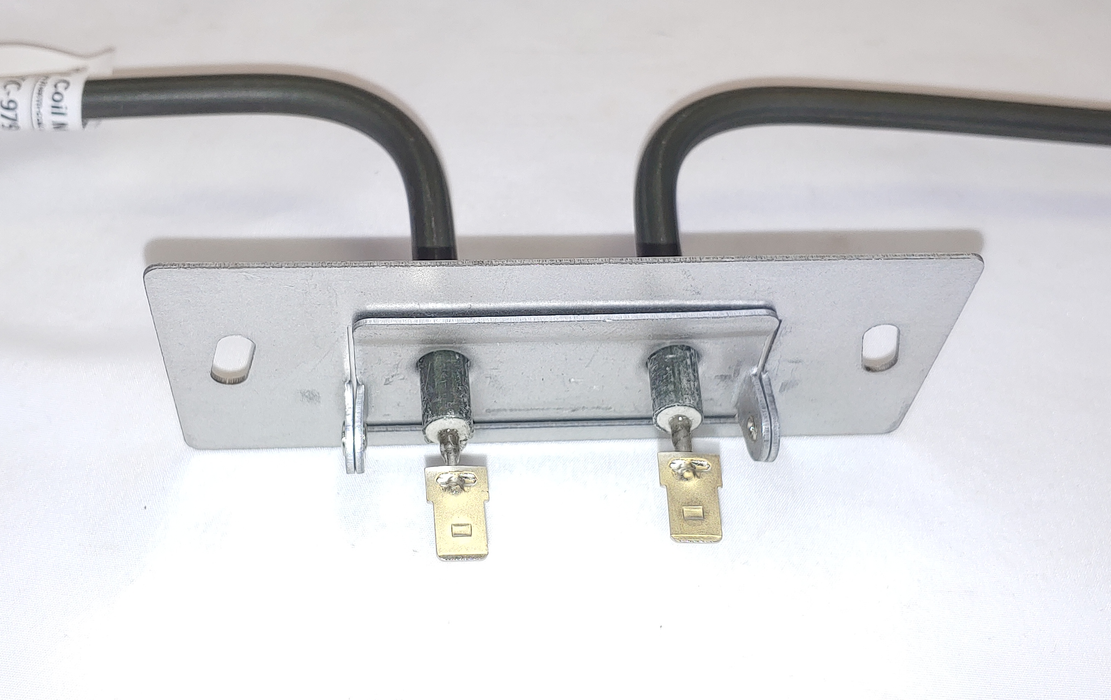

- Male Quick-Connect Push-In Terminals
- Used in various models of Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, Sears / Kenmore, and other Ranges And/Or Ovens: If your specific range or oven model number is not listed, use part numbers and dimensions to determine if this baking element will fit your appliance.
