Model TC-776: Kenmore / Roper / Whirlpool 4334146 Equivalent Range/Oven Bake Replacement Element, 2,500W @ 240V

Therm Coil Drawing No.: 366R-3084-003      Therm Coil Model No.: TC-776

Description

HELPFUL HINT: Use CTRL+F to use the search function for your part number.

• Replacement For Part Numbers:

Kenmore / Roper / Whirlpool: 4334146, 282717, 301471, 314620, 319529, 319837, 319838, 320420, 320421, 320424, 324186, 324187, 4332934, 4352194, 4352200, 4353023, 4353024, 4354077, 4354078, 4354356, 4354377, 4354428, 4354429, 4354638, 4354639, 4354640, 4355557, 4355987

Other: CH776, TJ90CH776, 508339, 115951, OEM12416730, OEM13693782, OEM18010406, OEM18010406, AP3104182, AP3423445, AP4502601, 456091, 458871, CH776, RP776, TS776, YCH776

• 2500 W @ 240 V  (1875W @ 208V)
• Approximate Overall Size: 19-1/4" Wide x 15-3/8" Length From Front Of Element To Mounting Bracket x 3-3/4" Insert From Bracket To Terminal Ends.

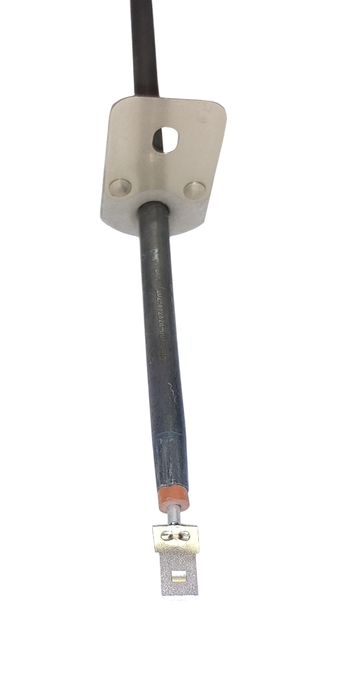

• Male Quick-Connect Push-In Terminals
• Used in various models of Roper, Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Kenmore/Sears, and other Ranges And/Or Ovens.  NOTE - Not all compatible model numbers are listed.  If your specific range or oven model number is not listed, use part numbers and dimensions to determine if this element will fit your appliance.

• Used In Appliance Model Numbers (among others):

2570B00, 2570B10, 2883*10, 2883W10

Therm Coil MFG. Co. is not affiliated with Whirlpool Corporation, Sears, or any other listed manufacturers or their affiliates.
