Model TC-701: Chambers 7568-D Equivalent Range/Oven Bake Replacement Element, 3,000W @ 250V
Save 15%
Original price
$ 81.00
Original price
$ 81.00
-
Original price
$ 81.00
Original price
$ 81.00
Current price
$ 68.85
$ 68.85
-
$ 68.85
Current price
$ 68.85
Availability:
4 in stock, ready to be shipped
Therm Coil Drawing No.: 366R-1701-003 Therm Coil Model No.: TC-701
Description
HELPFUL HINT: Use CTRL+F to use the search function for your part number.- Replacement For Part Numbers:
Chambers 7568-D, CH1004, CH701, CH1004WPL, 115418, 450870, RP701, TS1004, TS1004/701, TS701, TS701/1004, YCH1004, AP3389038
- 3000 W @ 250 V

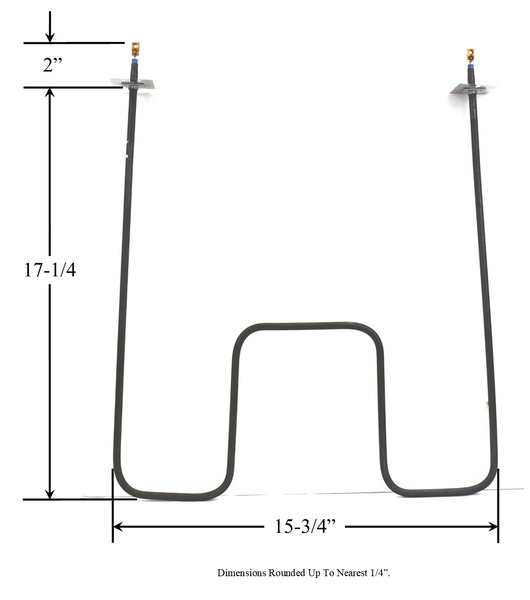

- Approximate Overall Size: 15-3/4" Wide x 17-1/4" Length From Back Of Element To Mounting Bracket x 1-7/8" Insert From Bracket To Terminal Ends.

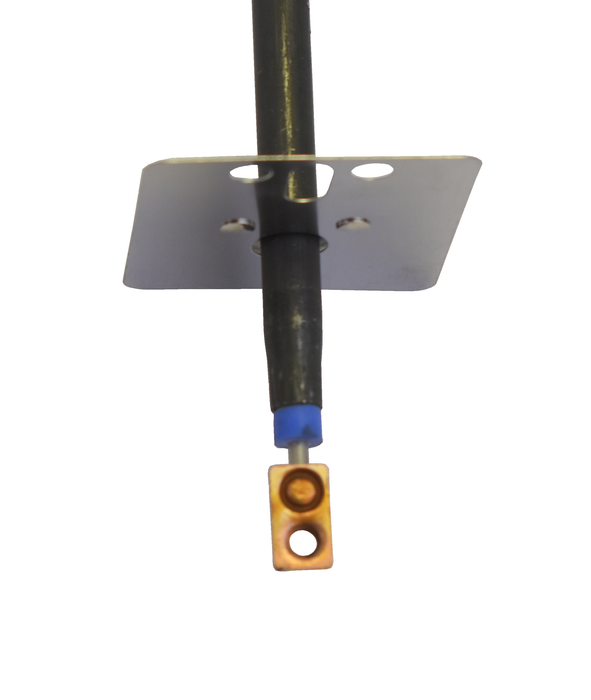

- Screw-In Terminals
- Used in various models of Whirlpool, Chambers, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Sears / Kenmore, and other Ranges And/Or Ovens: If your specific range or oven model number is not listed, use part numbers and dimensions to determine if this baking element will fit your appliance.
