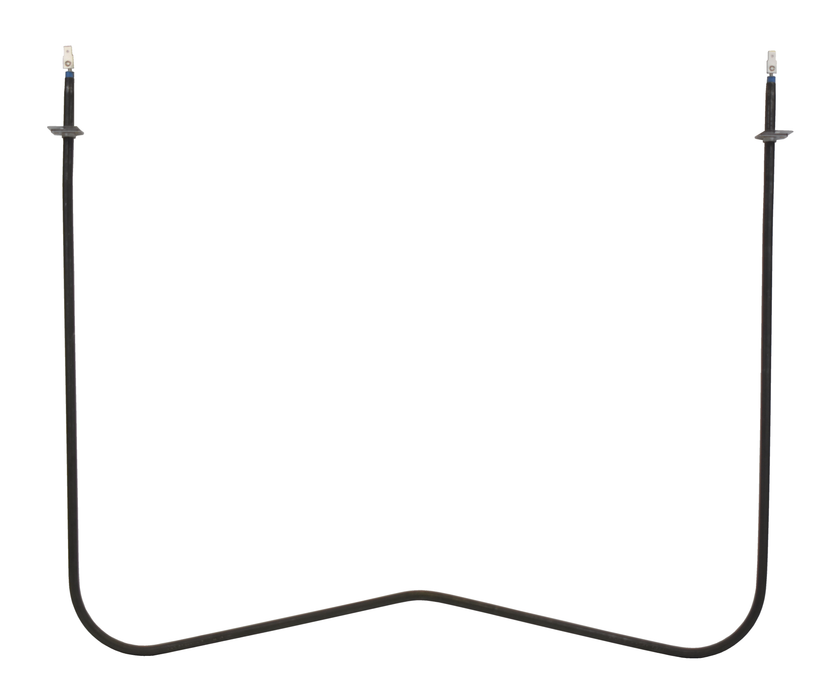

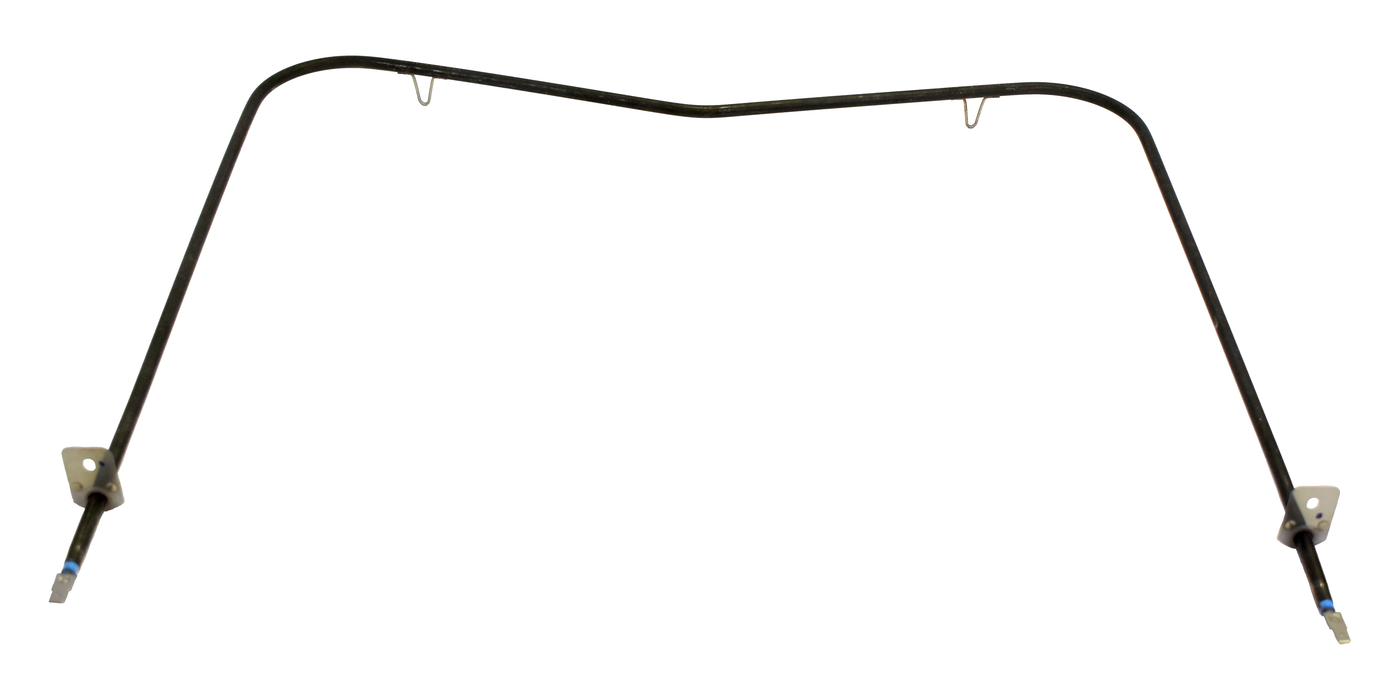

Model TC-700: Roper / Kenmore: 277543 / Whirlpool CH700 Equivalent Range/Oven Bake Replacement Element, 2,500W @ 250V

Therm Coil Drawing No.: 366R-1700-003      Therm Coil Model No.: TC-700

Description

HELPFUL HINT: Use CTRL+F to use the search function for your Part Number.

• Replacement For Part Numbers:

Roper / Kenmore: 277543

Whirlpool: TJ90CH700, 453333, CH700

Other: RP700, TS700, YCH700, AP4502599, AP4611711 , 115937

• 2500 W @ 250 V Rating

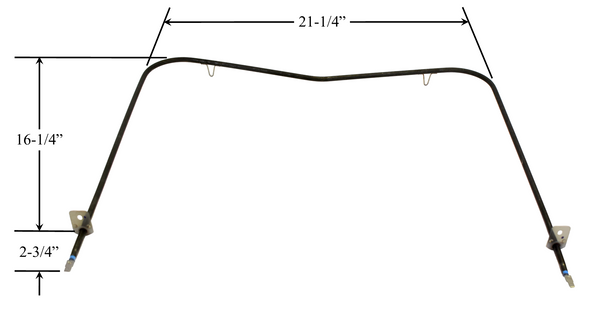

• Approx. Overall Size: 21-1/4" Width x 16-1/4" Length From Back Of Element To Mounting Brackets x 2-3/4" Insert From Bracket To Terminal Ends.

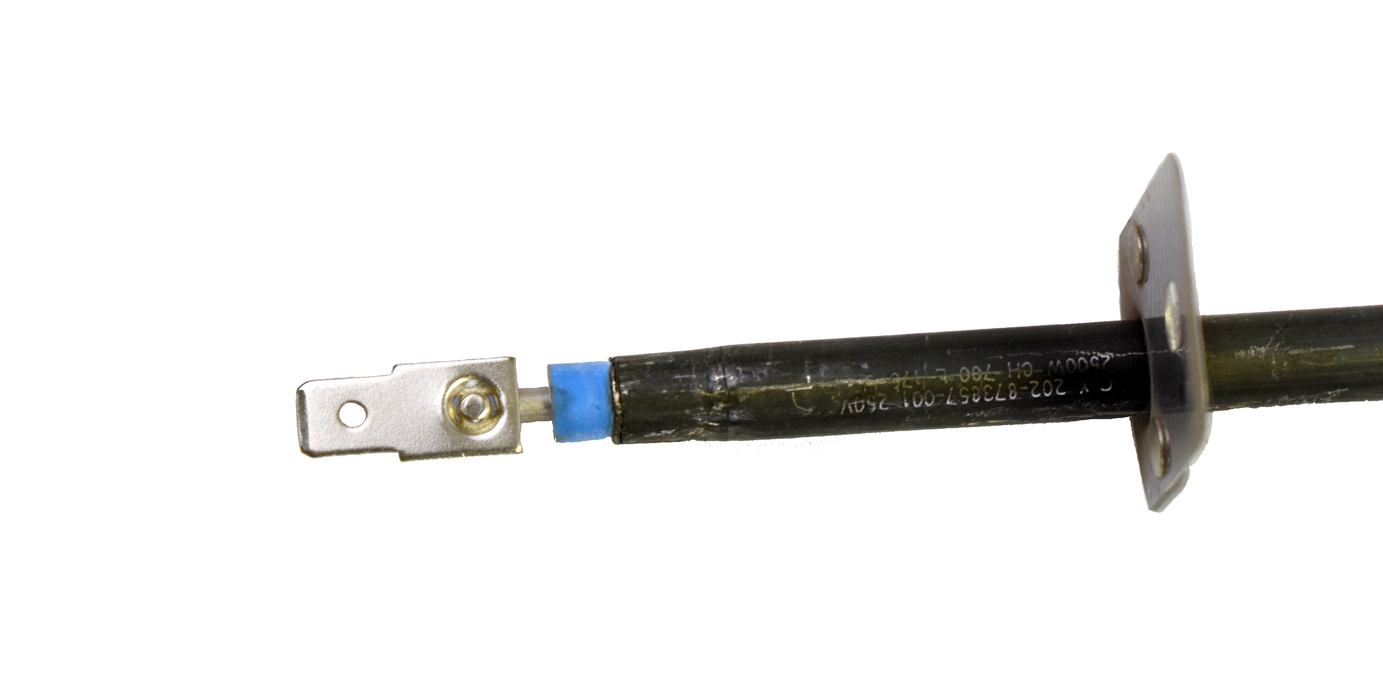

• Male Quick-Connect Push-In Terminals
• Used in various models of Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Sears / Kenmore, and other Ranges And/Or Ovens:   Use part numbers and dimensions to determine if this bake element will fit your appliance.

Therm Coil MFG. Co. is not affiliated with Whirlpool Corporation, General Electric Corporation, Sears, Roper Technologies, or any other listed manufacturers or their affiliates.
