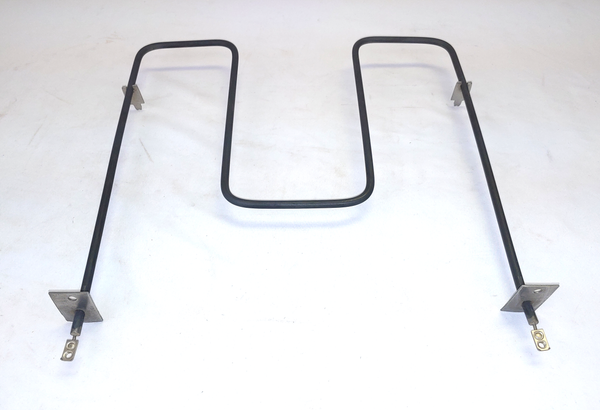

Model TC-684: Monarch / Whirlpool CH684 Equivalent Range/Oven Broil Replacement Element, 2,400W @ 240V
Save 15%
Original price
$ 70.00
Original price
$ 70.00
-
Original price
$ 70.00
Original price
$ 70.00
Current price
$ 59.50
$ 59.50
-
$ 59.50
Current price
$ 59.50
Availability:
16 in stock, ready to be shipped
Therm Coil Drawing No.: 366R-1684-003 Therm Coil Model No.: TC-684
Description
HELPFUL HINT: Use CTRL+F to use the search function for your Part Number.-
Replacement For Part Numbers:
Monarch: VARIOUS
Pan Pacific: VARIOUS
Whirlpool: CH684, 453755, 029-871845-001, 871845-001
Other: AP3087139, AP3956049, TS684, 115926
- 2400 W @ 240 V Rating

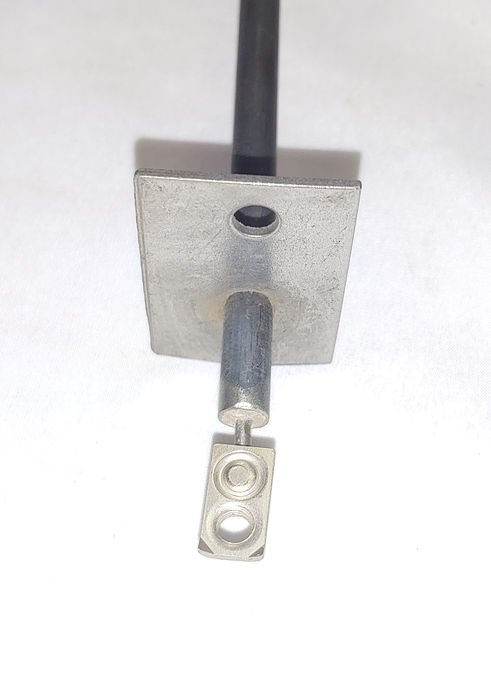

- Threaded Screw-In Terminals

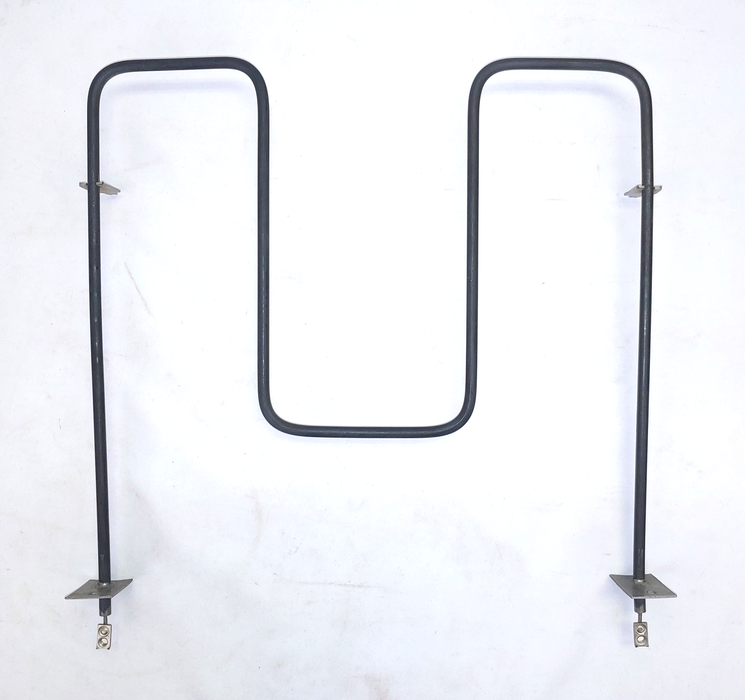

- Approx. Overall Size: 12-1/2" Element Width (16" Bracket Width) x 11" Length From Back Of Element To Mounting Brackets x 12-3/8" Insert From Bracket To Terminal Ends x 1-1/2" Center-to-Center Terminal Distance.
- Used in various models of Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Kenmore/Sears, and other Ranges And/Or Ovens: NOTE - Not all compatible model numbers are listed. If your specific range or oven model number is not listed, use part numbers and dimensions to determine if this element will fit your appliance.
