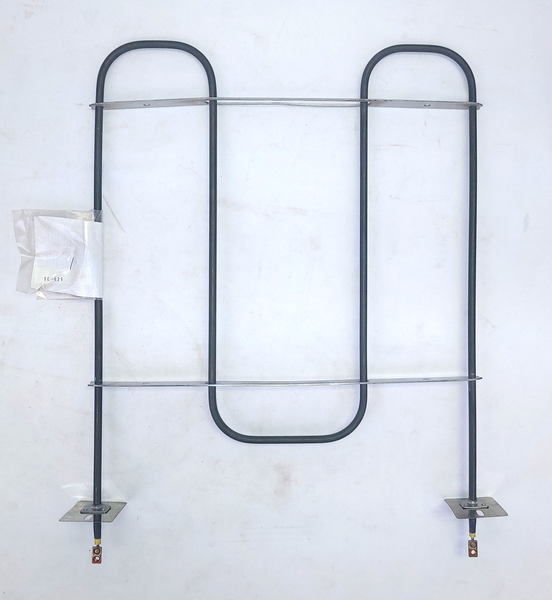

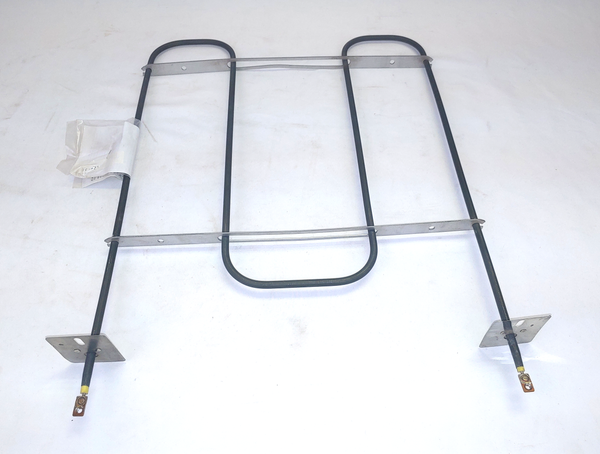

Model TC-621: Sunray 3005 / CH621 Equivalent Range/Oven Broil Replacement Element, 3,000W @ 240V

Model TC-621: Sunray 3005 / CH621 Equivalent Range/Oven Broil Replacement Element, 3,000W @ 240V

by Therm-Coil Mfg. Co.
Call for Availability
$ 100.00
$ 100.00 - $ 100.00
$ 100.00
$ 85.00
$ 85.00 - $ 85.00
$ 85.00
Availability:
Call for Availability

Therm Coil Drawing No.: 366R-1621-002      Therm Coil Model No.: TC-621

Description

HELPFUL HINT: Use CTRL+F to use the search function for your Part Number.

  • Replacement For Part Numbers:

Sunray: 03005, 3005

Suburban: R23221

Monarch: Replaces Various Models

Other:  CH621, 115843, 451901, RP621, RP822, TS621, YCH621, AP3388960, 115843

  • 3000 W @ 240 V Rating

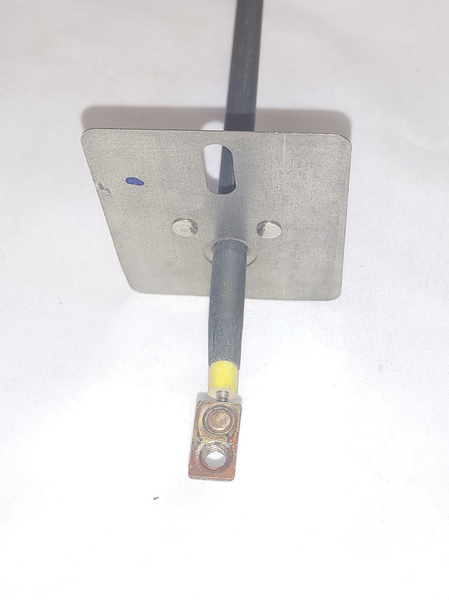

  • Threaded Screw-In Terminals
  • Approx. Overall Size: 13-1/4" Width x 16-1/8" Length From Back Of Element To Mounting Brackets x 1-3/4" Insert From Bracket To Terminal Ends.
  • Used in various models of Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, Kenmore/Sears, and other Ranges And/Or Ovens: NOTE - Not all compatible model numbers are listed.  If your specific range or oven model number is not listed, use part numbers and dimensions to determine if this element will fit your appliance.





    Therm Coil MFG. Co. is not affiliated with General Electric Corporation, Sears, or any other listed manufacturers or their affiliates.
