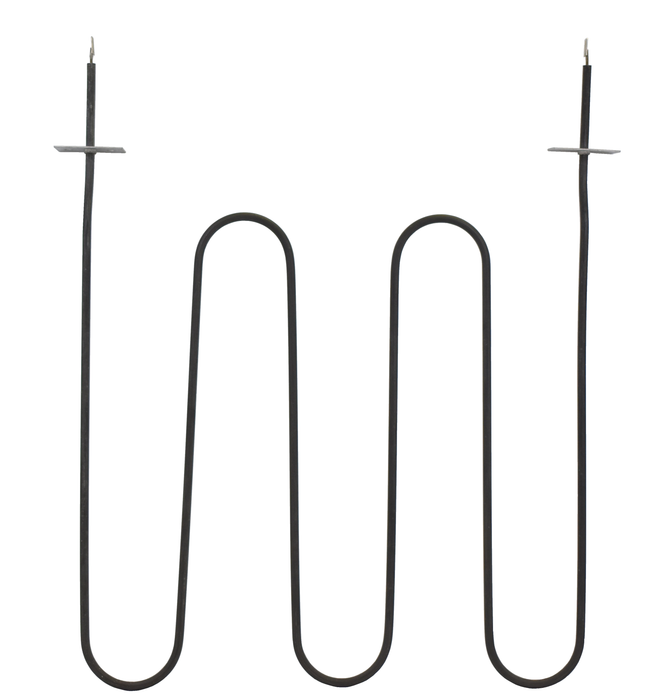

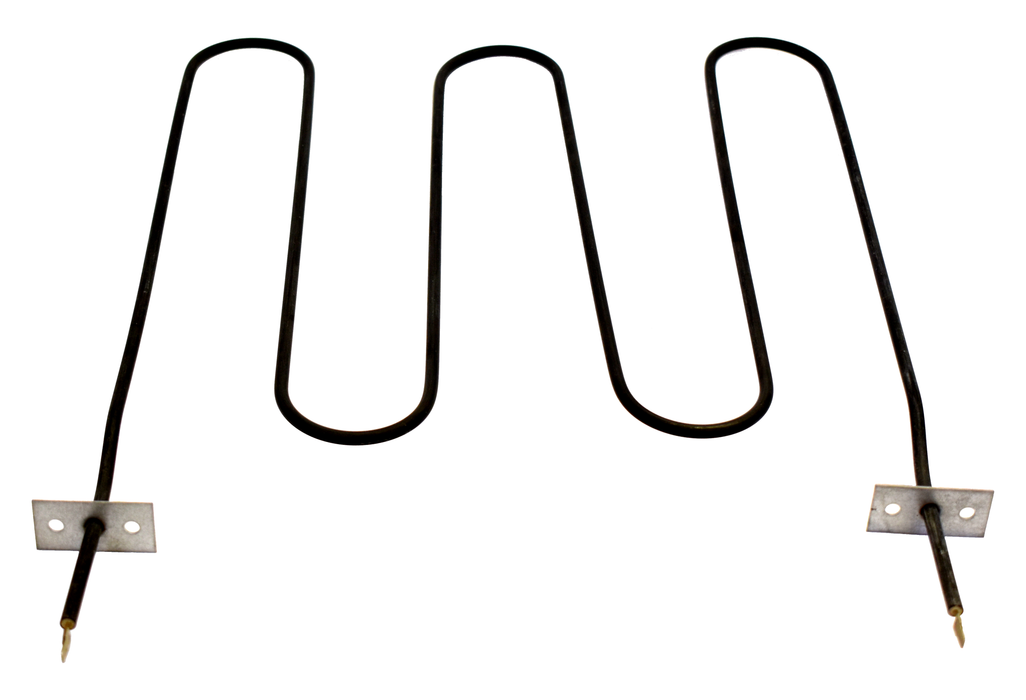

Model TC-5849: Whirlpool: CH5849 Equivalent Range/Oven Broil Replacement Element, 2,800W / 2,110W @ 240V / 208V

Model TC-5849: Whirlpool: CH5849 Equivalent Range/Oven Broil Replacement Element, 2,800W / 2,110W @ 240V / 208V

by Therm-Coil Mfg. Co.
Save 15% Save 15%
$ 92.50
$ 92.50 - $ 92.50
$ 92.50
$ 78.63
$ 78.63 - $ 78.63
$ 78.63
Availability:
Low Stock

Therm Coil Drawing No.: 366R-4076-003      Therm Coil Model No.: TC-5849

Description

HELPFUL HINT: Use CTRL+F to use the search function for your Part Number.

  • Replacement For Part Numbers:

Chambers: CC70781, 305566-1, 305566-2

Kenmore: CC70781

Whirlpool: CH5849, 458358

Other: AP3087064, 115782

  • 2800 W / 2110 W @ 240 V / 208 V Rating

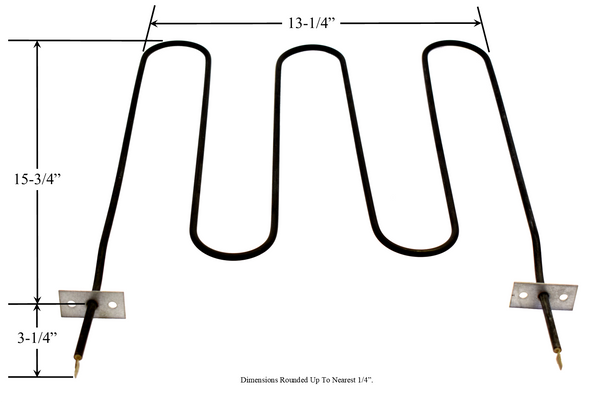

  • Approx. Overall Size: 13-1/4" Width x 15-3/4" Length From Back Of Element To Mounting Brackets x 3-1/4" Insert From Bracket To Terminal Ends.

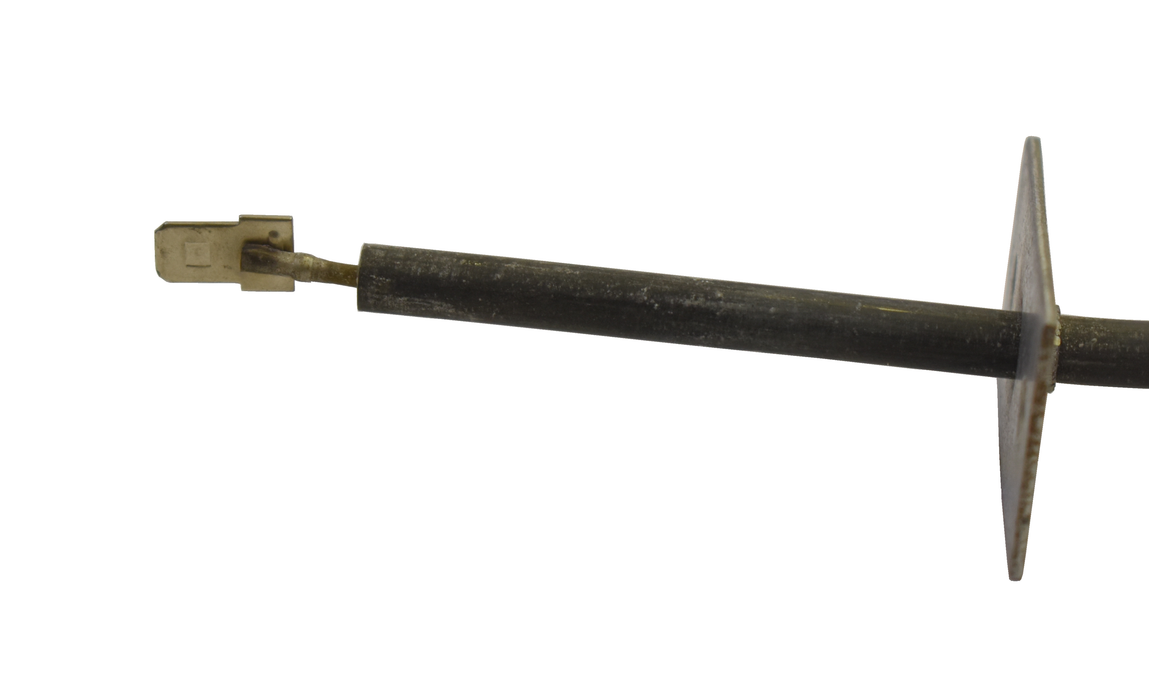

  • Male Quick-Connect Push-In Terminals
  • Used in various models of Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Sears / Kenmore, and other Ranges And/Or Ovens:   Use part numbers and dimensions to determine if this element will fit your appliance.





Therm Coil MFG. Co. is not affiliated with Whirlpool Corporation, General Electric Corporation, Sears, Roper Technologies, or any other listed manufacturers or their affiliates.
