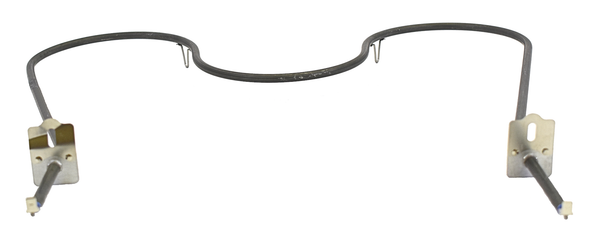

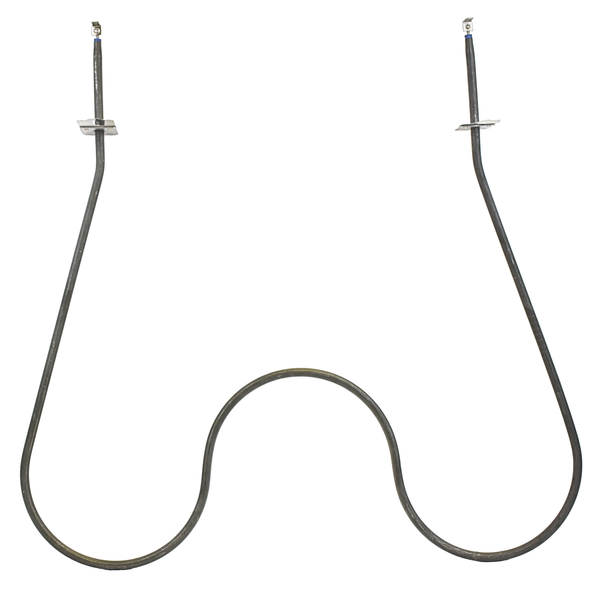

Model TC-4878: .315" DIA. Frigidaire / Kelvinator / Kenmore 5303051519 & Whirlpool WP865940 Equivalent Range/Oven Bake Replacement Element, 2,400W @ 208V ONLY

Therm Coil Drawing No.: 366R-3014-003      Therm Coil Model No.: TC-4878

Description

• PLEASE NOTE: Element TC-4878 Is safely designed ONLY for 208V applications and may fail or potentially cause a fire if used at 240V.  If your element requires 240V, you should instead purchase our TC-775 / 366R-3056-003. which can function at either 240V or 208V.  These two units cross-reference to the same  part numbers and oven models that they are compatible with, but TC-4878 should NEVER be used at 240V.

HELPFUL HINT: Use CTRL+F to use the search function for your Part Number.

• Replacement For Part Numbers:

Frigidaire / Kelvinator / Kenmore: 5303051519, 1312853, 1311298, 1312852, 1312854, 08002858, 09990061, 3051519, 316075101, 3467, 8002858

Whirlpool: WP865940, 865940, 14210578, 4165288, 4165317, 4371352, 4371426, 868963, 868964, 261913

Other: CH4878, 115696, 457924, AP3389478, AH453960, EA453960, F83-446, K001311298, K001312853, K1311298, K1312852, K1312853, PS453960, PS11746803, Q000212004, RP775, TS775, AP4601463, AP4601462, AP6013577, AP2136868

• 2400 W @ 208 V Rating

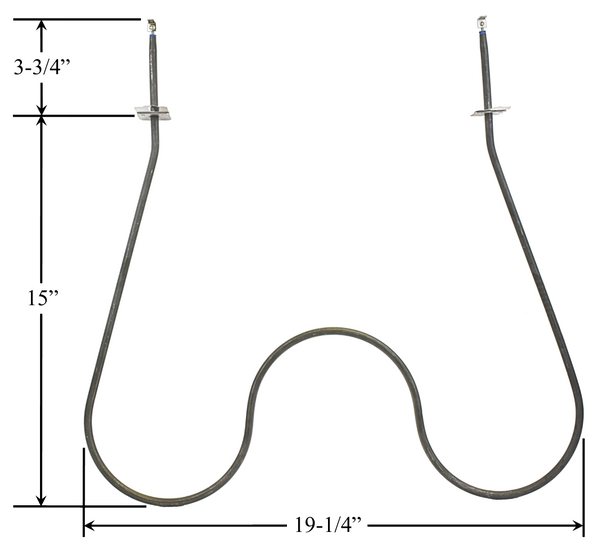

• Approximate Overall Size: 19-1/4" Width* x 15" Length From Back Of Element To Mounting Brackets x 3-3/4" Insert From Bracket To Terminal Ends x 13" Center-to-Center Terminal Width* (*Due to the flexible nature of this element, the dimensions marked may vary by up to ±1" but are readily restored during installation).

• Right-Angle Male Quick-Connect Push-In Terminals
• Used in various Whirlpool, Frigidaire, Kenmore, Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, Admiral, Estate, Inglis, KitchenAid, Roper, Maytag, Crosley, Jenn-Air, Hardwick, Magic Chef, Amana, Caloric & Glenwood ovens:  Use part numbers and dimensions to determine if this baking element will fit your appliance - it is used on hundreds of models.

Therm Coil MFG. Co. is not affiliated with Whirlpool Corporation, Sears, Roper Technologies, or any other listed manufacturers or their affiliates.
