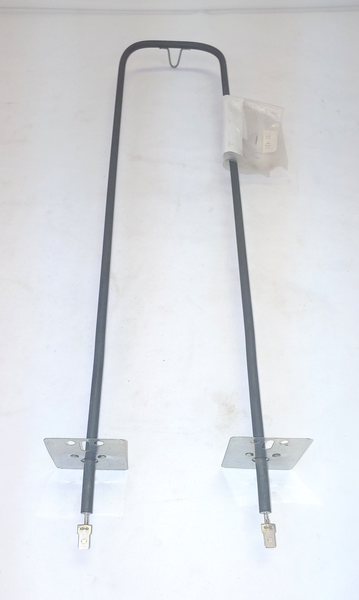

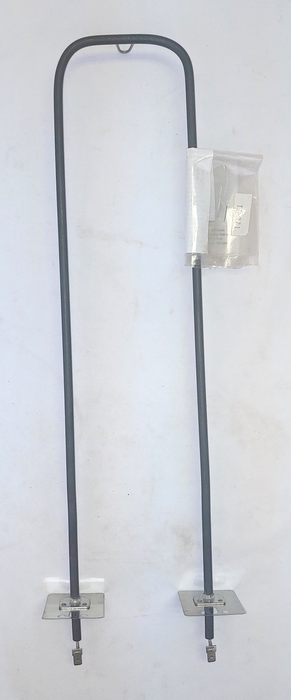

Model TC-5870: Caloric / Amana 91222 Equivalent Range/Oven Bake Replacement Element, 1,500W @ 240V

Therm Coil Model No.: TC-5870            Therm Coil Drawing No.: 366R-1421-003

Description

• Replacement For Part Numbers:


Amana / Whirlpool: Y0069059, Y0073019, 0069059, 0073019, 73019, 69059

Caloric / Whirlpool: Y0091222, 91222, 0091222

Other: CH5870, AP4279714, AP3389488, 115801, 458660, RP791, TS5870/791

• 1500W @ 240V Rating
• Approximate Overall Size: 4-1/8" Width* x 16-3/4" Back Of Element To Mounting Brackets x 2" Insert (Brackets to Terminal End)  (* Due to the flexible nature of this element, this dimension may vary up to ±1", but can easily be restored in assembly.)

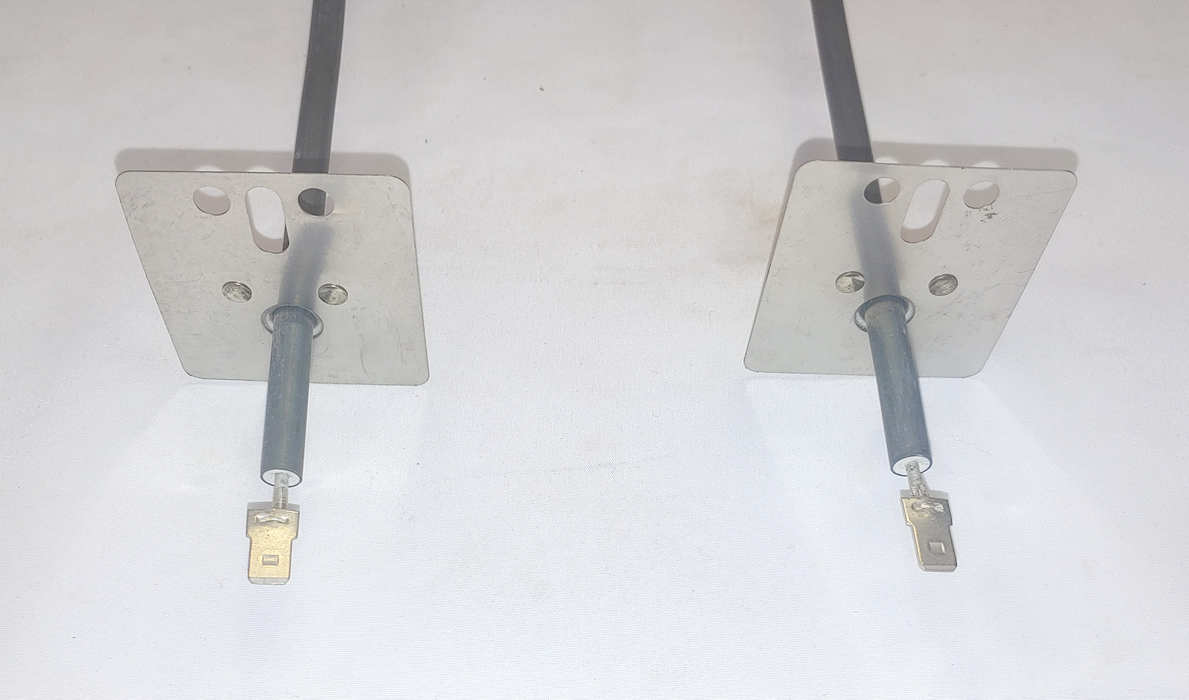

• Male Quick-Connect Push-In Terminals
• Used in various models of General Electric, Hotpoint, RCA, Sears / Kenmore,  and other Ranges And/Or Ovens:  Not all compatible model numbers are listed.  If your specific range or oven model number is not listed, use part numbers and dimensions to determine if this baking element will fit your appliance.

• Fits The Following Amana/Caloric Oven/Range Model Numbers As The Upper Oven Bake Element:

Therm Coil MFG. Co. is not affiliated with General Electric Corporation, Sears, or any other listed manufacturers or their affiliates.
