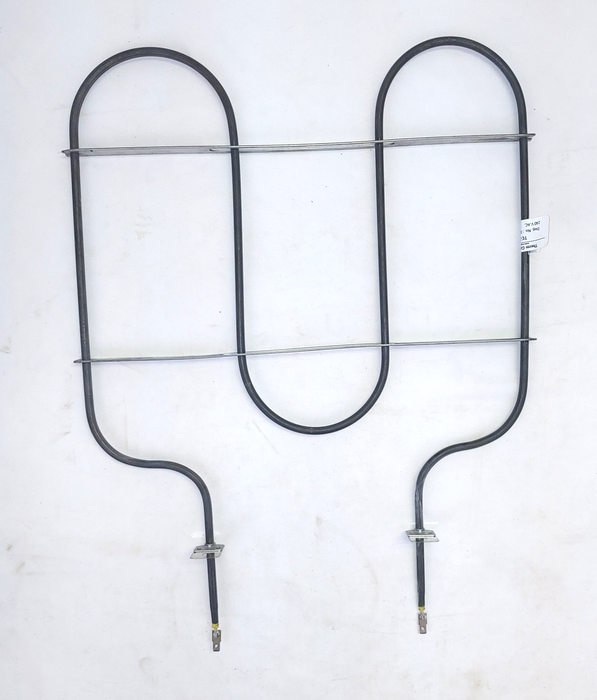

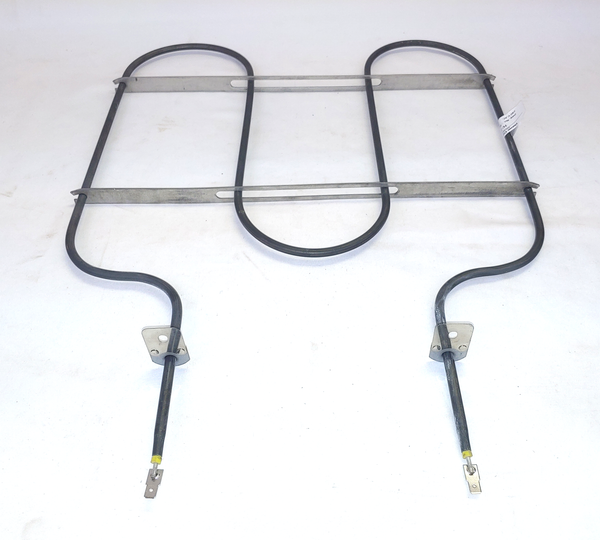

Model TC-2859: G.E./Roper/Kenmore/Whirlpool 296121 / 4334143 Equivalent Range/Oven Broil Replacement Element, 3,400W @ 240V

Therm Coil Drawing No.: 366R-4250-003      Therm Coil Model No.: TC-2859

Description

HELPFUL HINT: Use CTRL+F to use the search function for your part number.

• Replacement For Part Numbers:

G.E. / Kenmore / Roper / Whirlpool: 296121, 296566, 319487, 324163, 324249, 324251, 296122, 319488, 324164, 324252

Whirlpool: 4334143, 4332891, 4334161, 4352786, 4352825

Others: CH2859, CH4850, TJ90CH2859, 454934, 458898, 029-874850-001, 874850-001, 029-872859-001, 872859-001, RP789, TS2859, TS2859/789, TS7115, TS789, TS789/2859, YCH2859, B003N6RS76, B00LHRC17A, AP3104179, AP4502540, AP2601215, AP2608418, AP4620782, AP2608082, AP4621430, AP2607229, AP2595982, AP4620781, AP2608417, AP4615858, AP2601214, AP2600991, AP2608081, AP4615859, 115671, 569415, 115524

• 3400 W @ 240 V Rating
• Approximate Overall Size: 14-1/4" Wide x 15-5/8" Length From Back Of Element To Mounting Bracket x 3-1/4" Insert From Bracket To Terminal Ends x 7" Center-to-Center Terminal Width.

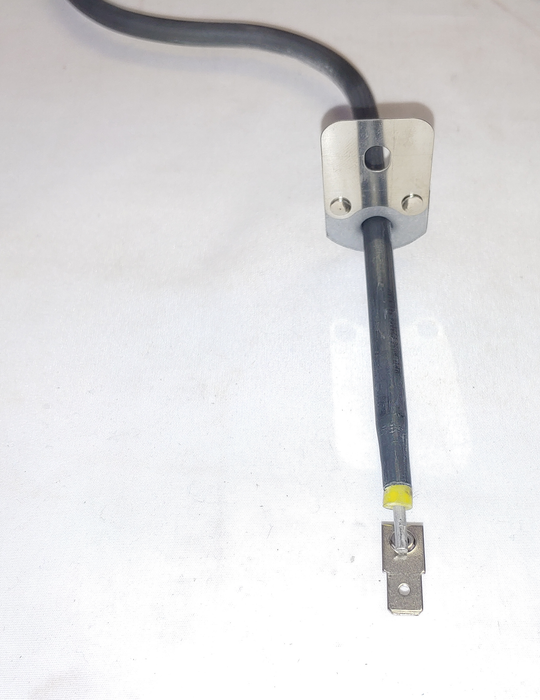

• Male 1/4" Push-In Quick-Connect Terminals
• Used in various models of  Kenmore/Sears, Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and other Ranges And/Or Ovens:  If your specific range or oven model number is not listed, use part numbers and dimensions to determine if this broil element will fit your appliance.

Therm Coil MFG. Co. is not affiliated with Whirlpool Corporation, Sears, or any other listed manufacturers or their affiliates.
