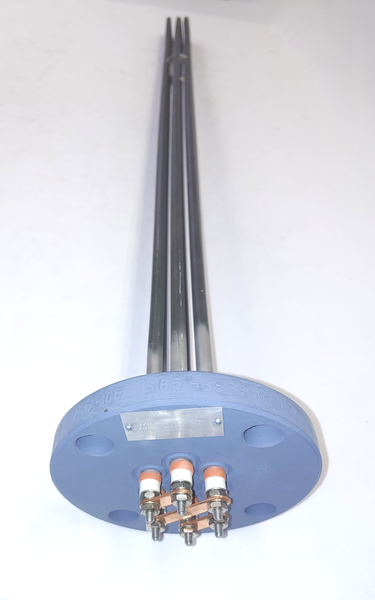

Model PFA-ES-30053-2: Electro-Steam ES-30480-037 Equivalent 30kW @ 480V, 6" DIA. Round Flange (2" NPS) 36" Immersion Element

Therm Coil Drawing No.: 378J-1004-037          Therm Coil Model No. PFA-ES-30053-2

Description

• Used Within Steam Generators and Sterilizers.
• 30,000 W (30KW) @ 480V Three-Phase Delta: Includes Gasket

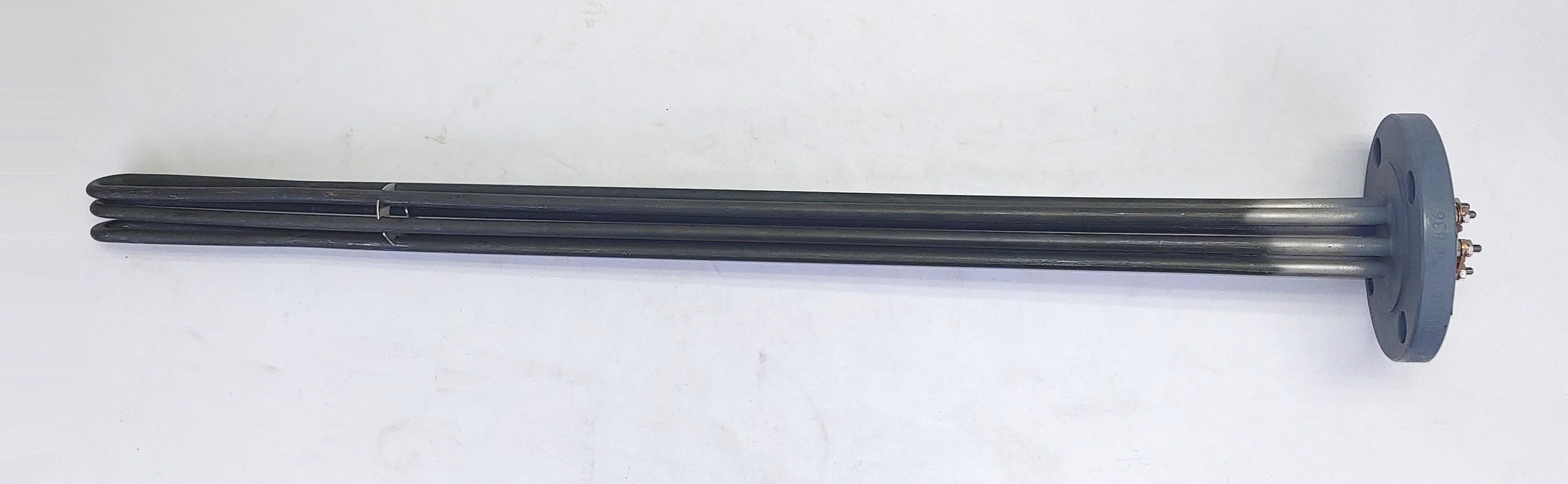

• 36" Immersion Length (±1%): (3) High-Performance Incoloy Alloy Sheath Elements For Long Life

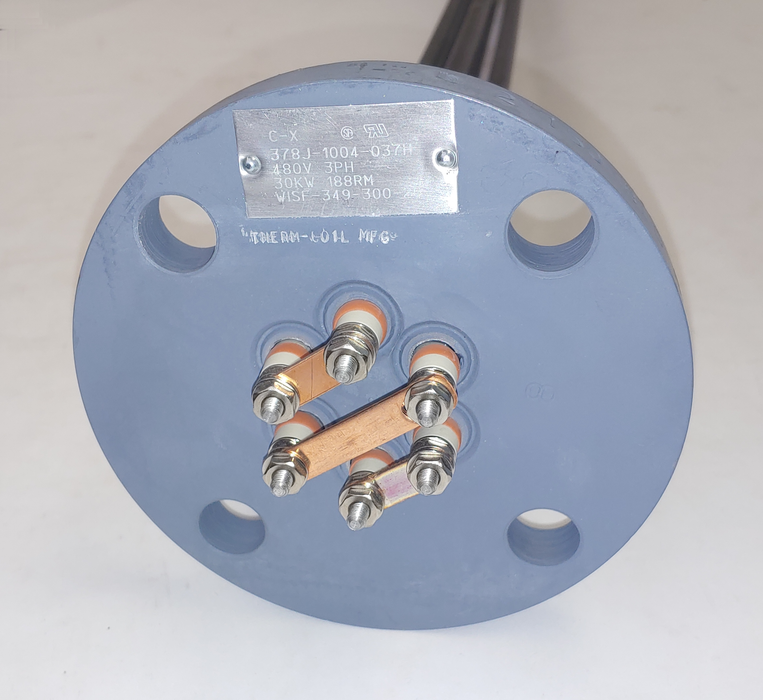

• 2" NPS 150# Steel Flange (6" Diameter Round x 0.75" Thick)

Compatible With Electro-Steam Models:

• Electro-Steam LB-60 (uses 2 heaters; total 2x 30kW)
• Electro-Steam  LB-120 (uses 4 heaters; total 4x 30kW)
• Electro-Steam LB-180 (uses 6 heaters; total 6x 30kW)

Replaces Part Numbers:

• Electro-Steam ES-30480-037
• Steris P-753995-091, P-764334-075
• Chromalox 155-500706-016
• Eichenauer 300585H
• Creative Assemblies 51A-1014-03

Specifications:

• Application: Replacement Part In Electro-Steam Sterilizers
• Sheath Material: Incoloy 800
• Voltage: 480V (Three Phase Delta)
• Wattage: 30,000 W (30 KW)
• Immersion Length: 36"
• Flange Material: Steel
• Flange Size: 2" NPS,150# (6" Round)
• Flange Mounting Holes: 4 x 0.75" DIA. Holes On 4.75" Bolt Circle

Electro-Steam is a registered trademark of Electro-Steam Generator Corporation.. Steris is a registered trademark of Steris Corporation. Chromalox is a registered trademark of Chromalox, Inc. Corporation. Eichenauer is a registered trademark of Eichenauer Heizelemente GmbH & Co..  Creative Assemblies Inc. / Allied Sales Corp. are copyrighted to same.

Therm Coil MFG. Co. is not affiliated with any of the aforementioned trademark owners, manufacturers, or their subsidiaries, and do not assert nor imply that the product sold on this page is in any way OEM parts.  Therm Coil MFG. Co. parts are compatible with many brand name electric boilers, steam generators, sterilizers, and pressure vessels.
