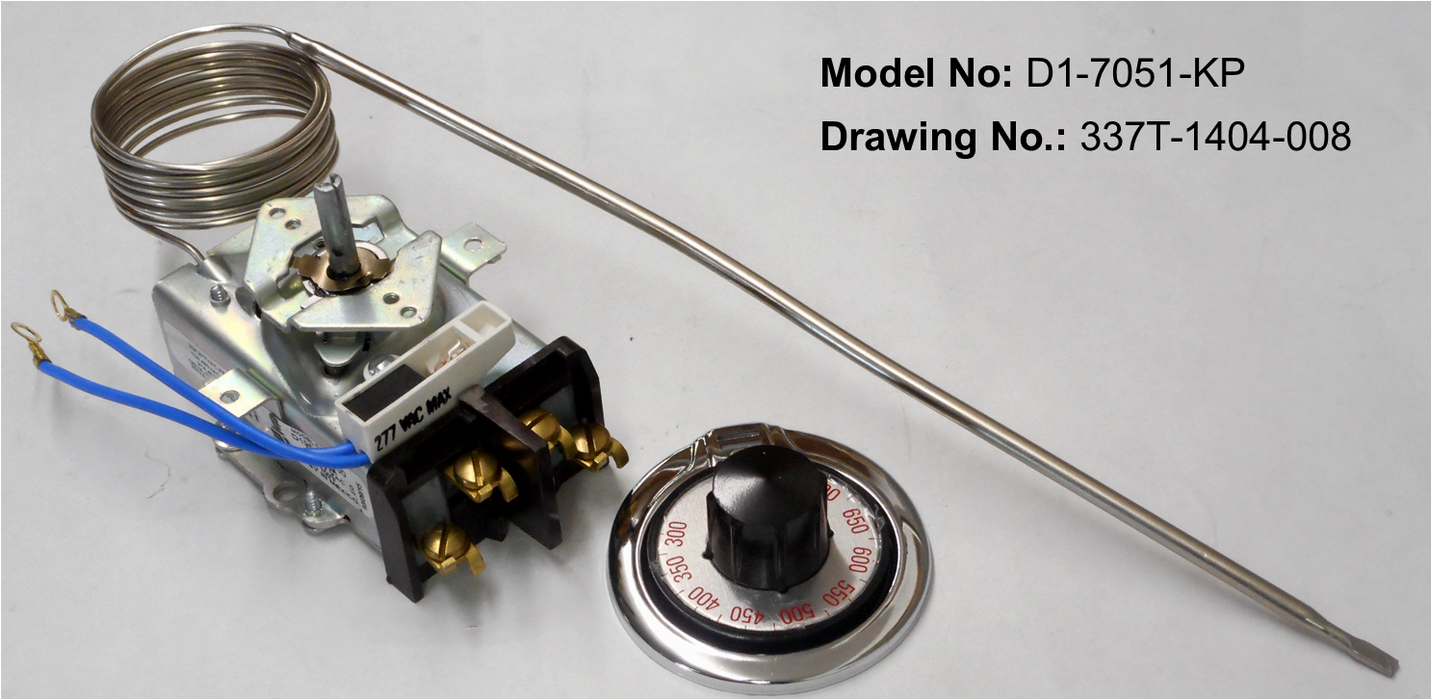

D1-7051-KP: 300°-700°F DPST Heating Line Voltage Mechanical Thermostat with Pilot Light, 120 to 480VAC

Call for Availability
Original price $ 488.00
Original price $ 488.00 - Original price $ 488.00
Original price $ 488.00
Current price $ 414.80
$ 414.80 - $ 414.80
Current price $ 414.80
Availability:
Call for Availability

Description

  • Our D1-7051-KP heating control with pilot light has a temperature range of 300°-700°F, and is rated for 120 to 480VAC. See chart below for non-inductive Amperage ratings. This control has a nickel-plated (steel) 60" (±2") capillary with a 3/16" DIA. x 12" (±1") long sensing bulb. This control has a maximum temperature differential of ±12°.
  • Application: This non-programmable, snap-acting, mechanical Double Pole, Single Throw (DPST) thermostat is for heating control only. (This will not work for cooling applications.)  These controls are commonly used in tanks, ovens, cleaning baths, and many other applications and automatically turn off heating equipment when the set temperature is reached.
  • IMPORTANT NOTE: If load amperage or voltage exceeds the switch rating, a magnetic contactor must be used.

D1 Thermostat Installation Instructions & Wiring Diagrams

    Pilot Light:

    The default pilot light option is rated up to 277VAC.  If you are using the control for voltages above 277VAC, then the pilot light will need to be upgraded - Please contact us at customer.service@thermcoil.com or 1-724-872-5007 to order the upgrade!

      Technical Information

      • Switch Type: DPST (double pole, single throw). A DPST switch turns up to two independent circuits on or off.
      • Switch Action: Normally Closed Contacts Open on Temperature Rise Only.
      • Thermostat Voltage: 120 to 480VAC
      • Non-Inductive Amperage Rating: See chart below.
      • Minimum Amperage Required: 5 Amps  (When below 5 Amps, the thermostat will not be able to maintain desired temperature reliably, or at all, and may fluctuate wildly in differential.)
      • Temperature Control Range: 300°F to 700°F
      • Maximum Temperature Differential: 12°
      • Capillary Length: 60" (±2")
      • Sensing Bulb Diameter: 3/16"
      • Sensing Bulb Length: 12" (±1")
      • Capillary and Sensing Bulb Material: Nickel-Plated (steel)
      • Thermostat Height x Width: 4-3/32" x 2-21/32"
      • U.L. Listed and C.S.A. Certified.



      IMPORTANT NOTE: If load amperage or voltage exceeds control rating, a magnetic contactor must be used.
