CQ2-1011-7: Copper Element, 1kW, 120V 1-Phase, 1-1/4" NPT Brass Screw Plug Immersion Heater With NEMA 1 General Purpose Enclosure (Unregulated), 7" Immersion Length
Call for Availability
Original price
$ 0
Original price
$ 0.00
-
Original price
$ 0.00
Original price
Current price
$ 0.00
$ 0.00
-
$ 0.00
Current price
$ 0.00
Availability:
Call for Availability
Therm Coil Drawing No.: 353D-1001-018
Therm Coil Model No: CQ2-1011-7
Series General Information:
- Copper Sheath with Brass 1-1/4" NPT Screw Plug (Silver Brazed): Our CQ2 models with 48-96 watt density (W/IN.²) are for use in clean water.
- Unregulated (No Thermostat): If you need this type of element but with temperature control, please see our ECQ2 Models.
- Includes Thermowell: accommodates up to 3/8" DIA. sensing bulb.
- NEMA 1, General Purpose Enclosure: the default enclosure type. If you require a Weather-Resistant and/or Explosion-Resistant Enclosures (Also Dust & Weather-Resistant), please contact us at 1-724-872-5007 or rheinhold@thermcoil.com.
- Screw plug immersion heaters must be fully covered by your liquid to prevent heater failure. (Other medium applications are possible, but require factory consultation.)
- All 240V models have the option to be operated at 208 VAC with a 25% reduction in wattage rating.
Product Description
- 1,000W @ 120V Single-Phase With 7" Immersion Length (C Dim.)
- Copper Sheath Elements: Suitable for clean water applications
- Unregulated (No Thermostat): See model ECQ2-1511 if you need adjustable thermostat temperature control, or contact us to discuss independent regulation needs and/or requirements
- Includes Thermowell: 4-1/2" Immersion Length (B Dim.) and accommodates up to 3/8" DIA. sensing bulb..
- NEMA 1 General Purpose Enclosure
- 1-1/4" NPT Brass Screw Plug.
- Screw plug immersion heaters must be fully covered by your liquid to prevent heater failure. (Other medium applications are possible, but require factory consultation.)
Technical Specifications
- Element Sheath Material: Copper
- Quantity Of Elements: 2
- Voltage: 120 VAC
- Electrical Phasing: 1 (Single-Phase)
- Wattage: 1,000 W (1 KW)
- Current: 14.4 Amps

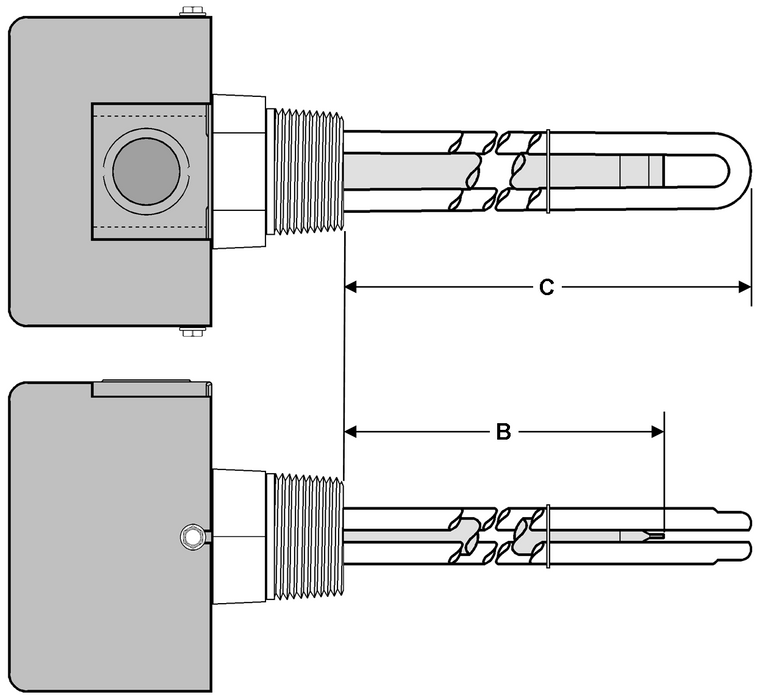

- Immersion Length: 7" (C Dim.)
- Watt Density (NOM.): 46 W/IN.²
- Screw Plug Size: 1-1/4" NPT
- Screw Plug Material: Brass
- Enclosure Type: NEMA 1 General Purpose
- Thermowell Immersed Length: 6-1/8" (B Dim.)
- Thermowell Accommodates Sensing Bulb Size: .375" DIA.
- Temperature Control Type: None
- Temperature Control Range: N/A
Note: Image(s) may not represent exact item, but one in the same series.
