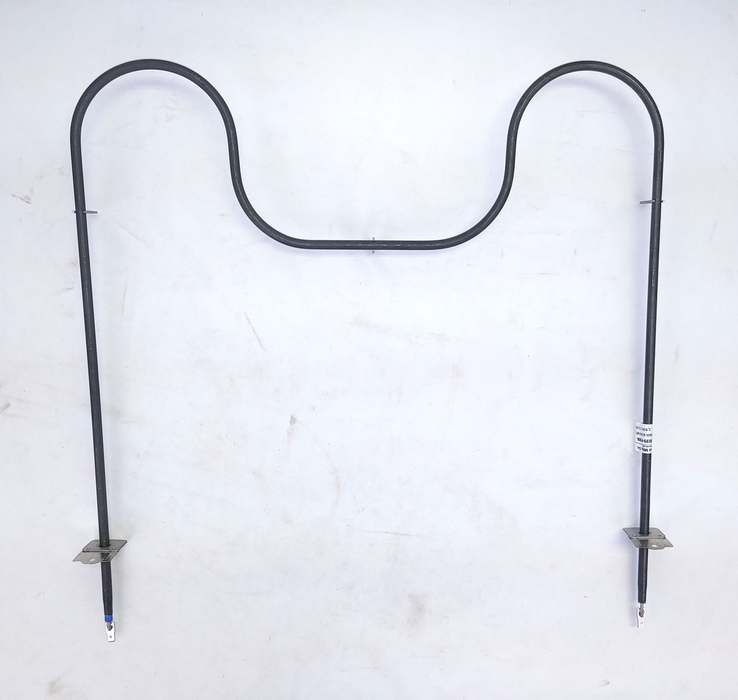

Model TC-74003039-P206: Whirlpool WP74003039 Equivalent Range/Oven Bake Replacement Element
Therm Coil Drawing No.: 366R-4230-003 Therm Coil Model No.: TC-74003039-P206
Description
- HINT: Use CTRL+F to use the search function for your part number.
- Replacement For Part Numbers: WP74010750, 74010750, 74003039, 74003039-P206, 7406P206-60, WP74010750VP, 7406P42560, 7406P425-60, CH6372-1, PS11744404, B01AIZ8X64, B00DM8K4AS, AP6011209, ERB0750, 1184162
- 1,939W / 2,585W @ 208V / 240V Rating
- Approximate Overall Size: 18-1/2" Width* x 15-7/16" Back Of Element To Mounting Brackets x 3-1/4" Insert (Brackets to Terminal End) (*Due to the flexible nature of this element, this dimension may vary up to ±1", but can easily be restored in assembly.)
- Male Quick-Connect Push-In Terminals
- Used in various oven/range models of Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Hoover, and Sears / Kenmore and more: If your specific range or oven model number is not listed below, use part numbers and dimensions to determine if this baking element will fit your appliance.
- HINT: Use CTRL+F to use the search function for your oven/range model number:
-
Fits In The Following Oven/Range Model Numbers:
JDS9860AAP, MER5770AAW, MER5730AAW, MER5550AAW, MER5530AAW, JDS9860AAB, JES9800AAS, PER5710BAW, JES9750AAB, JES9800AAB, CER1110AAH, JDS9860AAW, LER3330AAZ, JES9860AAB, MER5710AAW, MER5750AAW, CER3540AAW, JES9800AAW, MER4110AAW, MER5570AAW, CER1115AAW, JES9860AAS, CE35000AAW, CER3725AAW, MER5550AAA, MES5570AAW, JES9860AAW, LER3330AAW, MER5750BAW, PER5510BAW, MER5770AAA, MER5770AAB, CER3525AAW, MES5770AAB, MES5770AAW, CER3765AAC, MER4320AAW, CER3520AAH, JER8850AAW, MER5530AAH, MER5730BAW, CE35100AAW, CE35200AAV, MER5730AAA, CER1115AAH, CER1140AAW, CER1160AAH, CER3760AAW, JES9800AAQ, LER1115AAW, MER5530AAT, MER5550AAH, MER5750AAA, CER3540AAH, CER3725AAB, JES9750AAW, MER5730AAQ, MER5770BAW, MES5870AAW, AER5712AAW, CER1350AAH, CER3740AAH, LER3330AAB, MER5570AAA, AER5511AAW, CE35111AAW, CER1125AAW, CER1360BAW, CER3540AAL, MER4351AAW, MER5510AAL, MER5730BAQ, MES5870AAQ, 62945779, AER4311AAW, CE38600AAV, CE38800AAV, CER1110AAT, CER1150AAH, CER3520AAL, CES1350AAH, MEP5770AAB, MER4351AAB, MER5511BAW, MER5551AAW, MER5770AAQ, 62946799, CE38000AAW, CER3540AAA, CER3760AAL, CES3540AAW, CES3760AAB, JES8850AAW, MEP5770AAW, MER5530AAL, MER5550AAQ, MER5750BAQ, MER5751AAQ, MER5770BAB, MER5780BAW, MES5870AAB, PER5710BAQ, 62946795, AER5712AAQ, CE38700BAV, CER1115AAQ, CER1115AAT, CER1360AAW, JDS8850AAS, JES8750AAB, JES8850AAB, JES9750AAS, MER5520AAW, MER5530BAW, MER5551AAB, MER5751AAW, MER5752AAW, MER5780BAB, PER4310BAW, PER5510AAW, PER5705BAH, RESF5330DT, CE38600AAW, CER3520AGW, CER3540BAW, CER3740AAL, CES3760AAW, JDS9860BCP, JER8750AAW, JER8855AAS, JER8855BAS, MER4351AAQ, MER5552AAW, MER5730BAB, MER5750BAB, MER5755AAQ, MER5780BAS, MES5570AAB, MES5770AAA, PER5510BAQ, PER5715BAQ, PER5715BCW, AER5511AAB, CE35111AAV, CE38600AAB, CE38700BAQ, CE38800AAW, CEP3760AAB, CER3525AAB, CER3540AAQ, CER3540BAT, CER3725AAS, CER3740AAT, CER3760AAA, CES1110AAH, JDS9861AAP, JER8850AAQ, MER4110AAH, MER5510BAW, MER5550AAT, MER5550BAW, MER5720BAF, MER5721BAF, MER5730AAH, MER5730AAL, MER5752AAQ, MER5755AAW, MER5770BAQ, MER5775AAW, MER5780BAQ, MERD750BAB, MERD750BAF, MES5770AAQ, NER1360ACW, PER4310BAQ, PER5715BAW, 62946796, ACS4140BW, AER5712AAZ, CE35000AAA, CE35111AAQ, CE35200AAQ, CE35400AAQ, CE35400AAV, CE38300AAV, CE38300BAW, CE38700BAW, CEP3540AAA, CER1100AAH, CER1110AAL, CER1160AAT, CER1350AAL, CER1450AAH, CER2350AAH, CER3540BAH, CER3540BAQ, CER3725AAQ, CER3760AAH, CER3760BAC, CER3760BAH, CER3760BAQ, CER3760BAW, CES3760AAQ, DCF4115AW, DCF4215AC, JDS8850AAB, JDS8850AAQ, JDS9860ACW, JER8550AAA, JER8650AAB, JER8650AAW, JER8750AAA, JER8850AAA, JER8850BAW, JES8750AAW, JES9800ACB, MER4530AAW, MER5510BAQ, MER5530BAB, MER5530BAQ, MER5550AAL, MER5551AAQ, MER5552AAQ, MER5570ACQ, MER5730AGW, MER5752AAB, MER5752ACS, MER5770BCW, MER5870AAB, MER5870ACW, MERD750BAN, MES5770AAC, MES5870AAC, PER5502BAT, PER5505BAH, PER5509AAW, PER5510AAQ, RESF3330DB, 62945775, 62945776, ACS4140BB, AER1110AAH, AER1110BAH, AER1140AGH, AER1150AAH, AER1350AAH, AER1350AAL, AER1350AAT, AER1350AMH, AER1350BAH, AER1350BAT, AER1360AGW, AER1360BGW, AER1450AAH, AER1450BAH, AER2350AMH, AER4111AAW, AER5511AAQ, AER5511ACB, AER5511ACW, AER5710BAH, AER5712AAS, AER5712ACW, AER5712ACZ, CC35111ACV, CC35111BCV, CC38300ACV, CC38700ACV, CE35000AAT, CE35100AAA, CE35100AAT, CE35110BCV, CE35111AAA, CE35111AAD, CE35111AAT, CE35200AAW, CE35400ACV, CE38000AAA, CE38000AAT, CE38300BAB, CE38300BAQ, CE38300BAT, CE38300BAV, CE38300BCV, CE38600AAQ, CE38600ACV, CE38700AAD, CE38700AAQ, CE38700AAV, CE38700BAT, CE38700BCV, CE38800AAQ, CE38800AAS, CE38800ACS, CE38800ACV, CE38800BAS, CEP3540AAQ, CEP3540AAW, CEP3760AAA, CEP3760AAQ, CEP3760AAW, CER1125ACW, CER1140AAA, CER1140AAQ, CER1140ACW, CER1150AAL, CER1160AAL, CER1360AAH, CER1360AAL, CER1360ACH, CER1360ACL, CER1360ACW, CER1360AGW, CER1360BCW, CER1360BGW, CER2350AAL, CER2350AGH, CER2350AGL, CER3520AAT, CER3525AAQ, CER3525ACW, CER3540AAT, CER3540ACA, CER3540ACB, CER3540ACW, CER3725ACW, CER3725AGW, CER3735ACZ, CER3760AAQ, CER3760ACA, CER3760ACQ, CER3760ACW, CER3760AGH, CER3760AGW, CER3760BAT, CER3760BGW, CER4351AGW, CES3540AAC, CES3540ACC, CES3540ACW, CES3760AAA, DCF4115AC, DCF4205BK, DCF4205BT, DCF4215AW, DF454670, DF454676, DF454677, DF456570, DF456577, JDS8850AAW, JDS8850ACS, JDS8850ACW, JDS9860ACB, JDS9860ACP, JER8500AAA, JER8500AAW, JER8530AAQ, JER8530AAW, JER8550AAB, JER8550AAW, JER8550ACB, JER8550ACW, JER8650AAA, JER8750AAB, JER8750AAQ, JER8750ACB, JER8750ACW, JER8750BAB, JER8750BAQ, JER8750BAW, JER8849BCQ, JER8849BCW, JER8850AAB, JER8850ACB, JER8850ACW, JER8850BAB, JER8850BAQ, JER8854BCS, JES8850AAQ, JES8850AAS, JES8850ACB, JES8850ACS, JES8850ACW, JES9800ACS, JES9800ACW, JES9860ACB, JES9860ACS, JES9860ACW, LER3725AAC, MER4120AAW, MER4320AAA, MER4320AGH, MER4320AGW, MER4326AAA, MER4326AAW, MER4326AGW, MER4351AGW, MER4530AAA, MER4530AAH, MER4530AAL, MER4530AAQ, MER4530ACH, MER4530ACL, MER4530ACW, MER4530BCW, MER5510AAH, MER5510AAT, MER5510AAW, MER5510BAB, MER5511BAQ, MER5520AAQ, MER5530ACW, MER5530BGW, MER5550BAB, MER5550BAQ, MER5551AAS, MER5552AAB, MER5552AAS, MER5570AAQ, MER5570ACA, MER5570ACW, MER5570BCQ, MER5570BCW, MER5710AAQ, MER5720BAQ, MER5721BAQ, MER5730ACW, MER5730BGW, MER5750AAB, MER5751AAB, MER5751AAS, MER5751ACS, MER5751ACW, MER5752AAS, MER5752ACW, MER5755AAB, MER5770ACB, MER5770ACQ, MER5770ACW, MER5770BCB, MER5770BCQ, MER5775AAB, MER5775AAQ, MER5870AAA, MER5870AAQ, MER5870AAW, MER5870ACB, MER5870BAB, MER5870BAQ, MER5870BAW, MER5870BCQ, MER5870BCS, MER5870BCW, MER5880BAB, MER5880BAQ, MER5880BAS, MER5880BAW, MERD750BAS, MES5770ACB, MES5770ACW, MES5870AAA, MES5870ACB, MES5870ACW, NER1360AGH, NER3540ACW, NER3760ACW, PER1125ACW, PER3524ACW, PER3525ACW, PER3724ACB, PER3724ACW, PER3725ACW, PER4100BAW, PER4102BAH, PER4102BAT, PER4305BAH, PER4305BAT, PER4310BCW, PER4311ACW, PER4510AAQ, PER4510AAW, PER4510ACW, PER5502BAH, PER5505BAT, PER5508BAQ, PER5508BAW, PER5510ACW, PER5515BCQ, PER5515BCW, PER5702BAH, PER5702BAT, PER5705BAT, PER5708BAQ, PER5708BAW, PER5710BAC, PER5715BCQ, PER5720ACW, PER5720LAQ, PER5720LAW, RESF3330DW, RF301OXTW01
