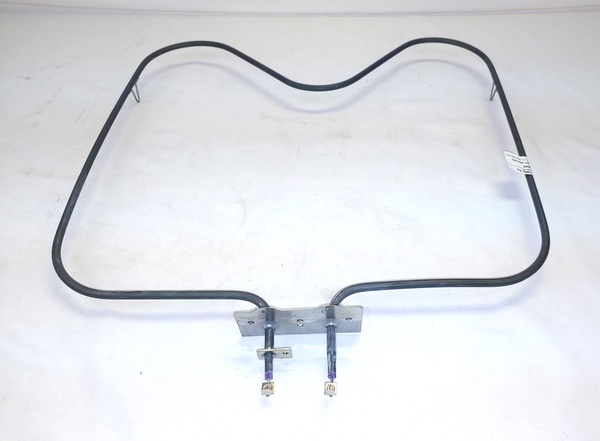

Model TC-5829: Whirlpool: WPY04000066 Equivalent Range/Oven Bake Replacement Element, 2,750/2,065 W @ 240/208 V
Therm Coil Drawing No.: 366R-3069-003 Therm Coil Model No.: TC-5829
Description
HELPFUL HINT: Use CTRL+F to use the search function for your part number.-
Replacement For Part Numbers:
Magic Chef: 1938-268, 1938-318, 1938-325, 1938-362, 1938-370, 1938318, 1938268, 1938325, 1938370, 1938362, 106A-976M, 106A-96AM, 106A-964M, 106A-96DM
Maytag: 5-51119, 551119, 7-90208, 74004073, 7406P013-60, 7406P075-60, 7406P424-60
Whirlpool: WPY04000066, Y04000066, 04000047, 04000066, 0E00105199
Other: CH5829, 202-875829-001, 875829-001, AP6024122, AP6326740, 790208, PS11757472, W10310269, WPY04000066VP, Y04000047, Y0E00105199, TJCH5829, TJ90CH5829, 458150, ERB856, RP856, TS5829, TS5829/856, TS7129, TS856, TS856/5829, YCH5829
- 2750W / 2065W @ 240V / 208V Rating

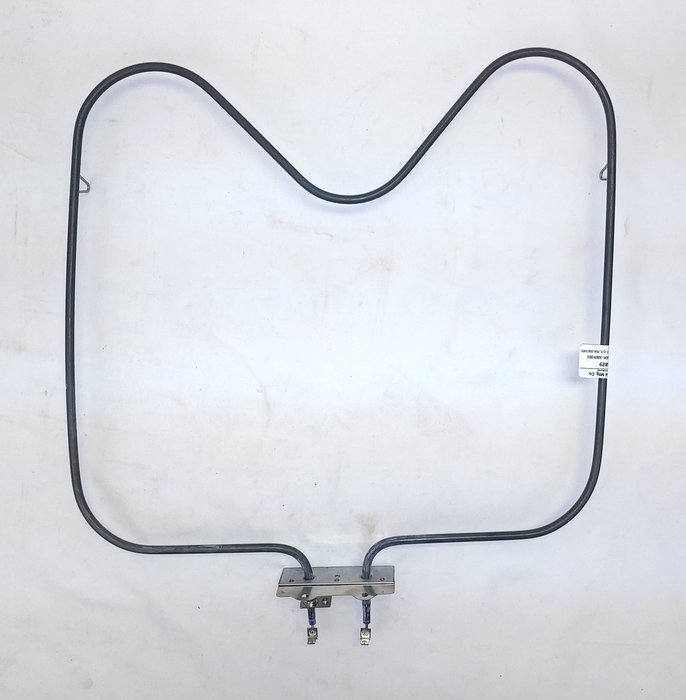

- Approximate Overall Size: 16" Width x 16" Back Of Element To Mounting Brackets x 2" insert From Mounting Bracket to the Terminal Ends x 1-3/4" Center-to-Center Terminal Width.

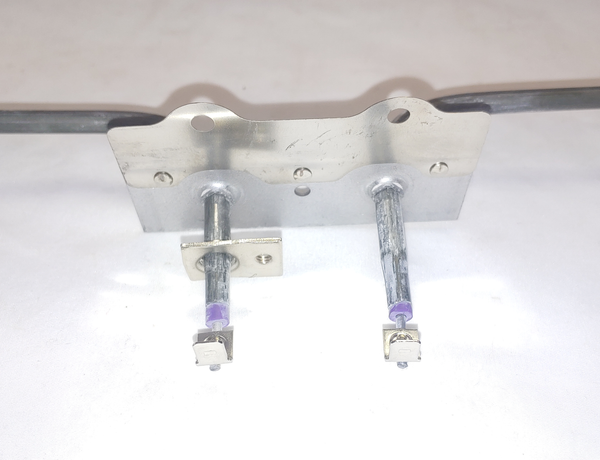

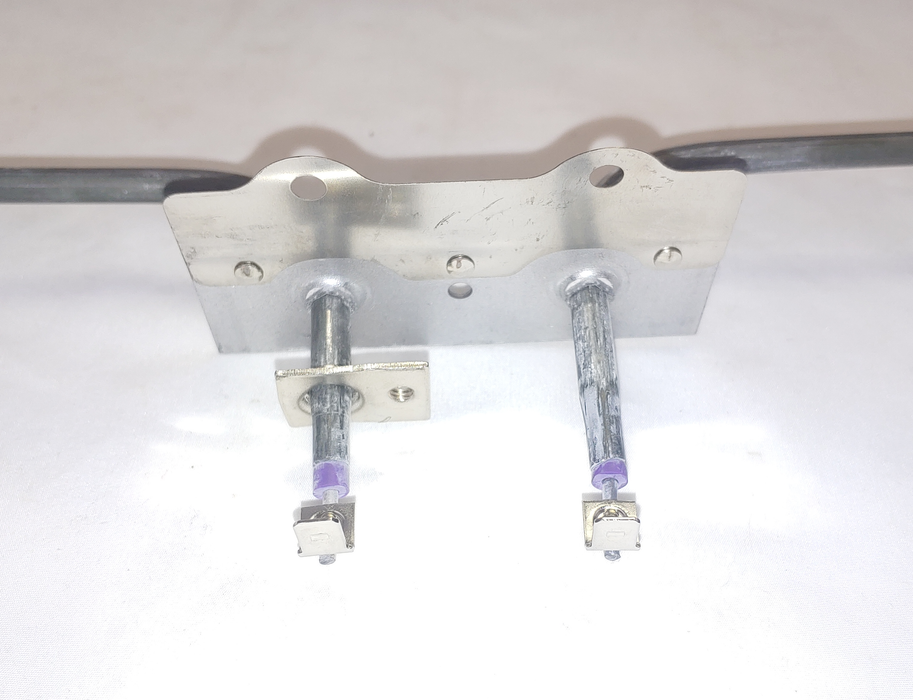

- #8-32 Threaded Ground Terminal

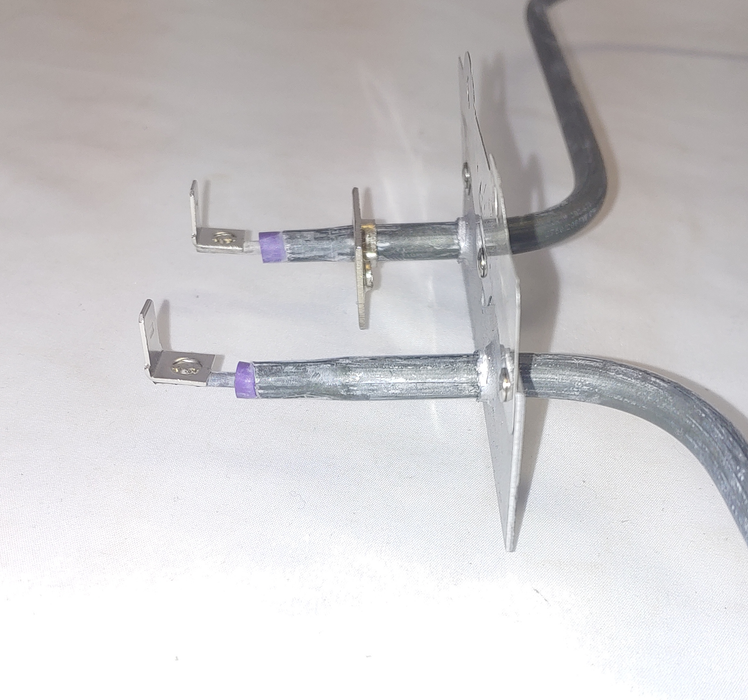

- Right-Angle Male Quick-Connect Push-In Terminals
- Used in various models of Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Sears / Kenmore, and other Ranges And/Or Ovens: If your specific range or oven model number is not listed, use part numbers and dimensions to determine if this baking element will fit your appliance.
