Therm Coil Drawing No.: 337T-1211-004

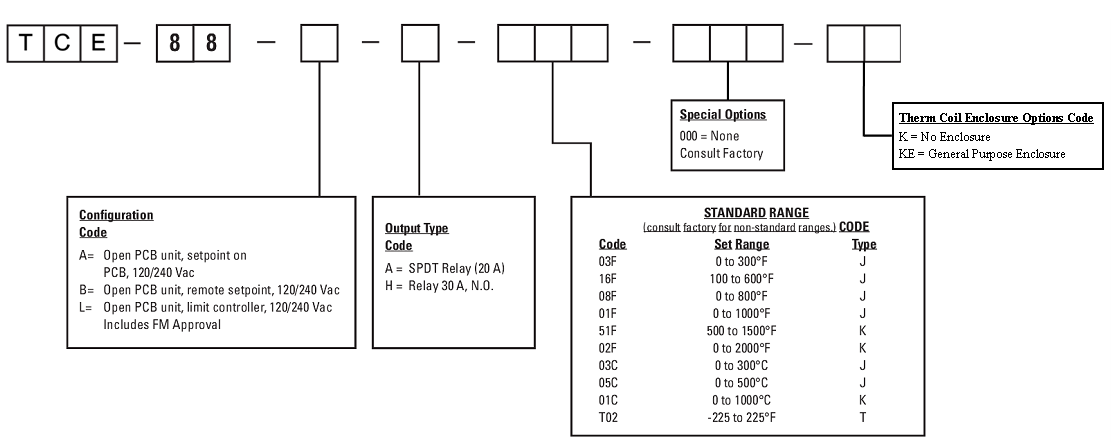

Therm Coil Model No: TCE-88-B-A-08F-000-K

Athena Model No.: 88-B-A-08F-000

Description

   This model can be wired for either heating or cooling applications, has a temperature range of 0° to 800°F, a 12" remote setpoint, and has a SPDT 30A relay rated for 120/240V use.  If you'd like this model, but with a PCB-mounted setpoint, click here.

   The Athena Series 88 is a non-indicating, track mounted temperature controller that can be used as a superior replacement for bulb and capillary controllers. The controller accepts thermocouple input, and offers a 20 Amp relay output.

• On-Off or Time Proportioning
• Failsafe on Open Sensor
• No Calibration Necessary
• 1% Accuracy
• Thermocouple Input
• Track Mounted
• Cooling Processes

Technical Specifications

• Temperature Range: 0° to 800°F
• Setpoint: Single-turn, 270° rotation potentiometer (12" remote)
• Setpoint Resolution: 1/4% with remote potentiometer
• Calibration Accuracy: 1% at calibration points with remote potentiometer
• Ambient Temperature: 32°F to 130°F (0°C to 55°C)
• Humidity Tolerance: 5 to 95%, non-condensing
• Cold Junction Compensation: Internal electrical bridge
• Hysteresis/ Proportional Band: Thermocouple adjustable from hysteresis of 5° to proportional band of 25° RTD deadband is 3° to proportional band of 10°
• Thermocouple Break Protection: Output power off with open sensor
• Hysteresis/ Proportional Band: Thermocouple adjustable from hysteresis of 5° to proportional band of 25° RTD deadband is 3° to proportional band of 10°
• Thermocouple Break Protection: Output power off with open sensor
• Output: Type A Relay - S.P.D.T. 20 A @ 120/240 V





Disclaimers: Athena is a  registered trademark of Athena Controls Inc..
Therm Coil MFG. Co. is not affiliated with any of the aforementioned trademark owners, manufacturers, or their subsidiaries.
