![AA-5053-SSN Models: 5000W @ 480V 3-Phase 13" Immersion Length Unregulated Incoloy Sheath With Stainless Steel 2-1/2" NPT Screw Plug Immersion Elements](http://www.therm-coil.com/cdn/shop/files/365A-1003DomeWebsiteDIMSFig_fba75838-b854-4ac5-9a5f-7f4c982375e3_1503x629.png?v=1701719161)
AA-5053-SSN Models: 5000W @ 480V 3-Phase 13" Immersion Length Unregulated Incoloy Sheath With Stainless Steel 2-1/2" NPT Screw Plug Immersion Elements
Call for Availability
Original price
$ 635.00
Original price
$ 635.00
-
Original price
$ 635.00
Original price
$ 635.00
Current price
$ 539.75
$ 539.75
-
$ 539.75
Current price
$ 539.75
Availability:
Call for Availability
Therm Coil AA-5053-SSN Model

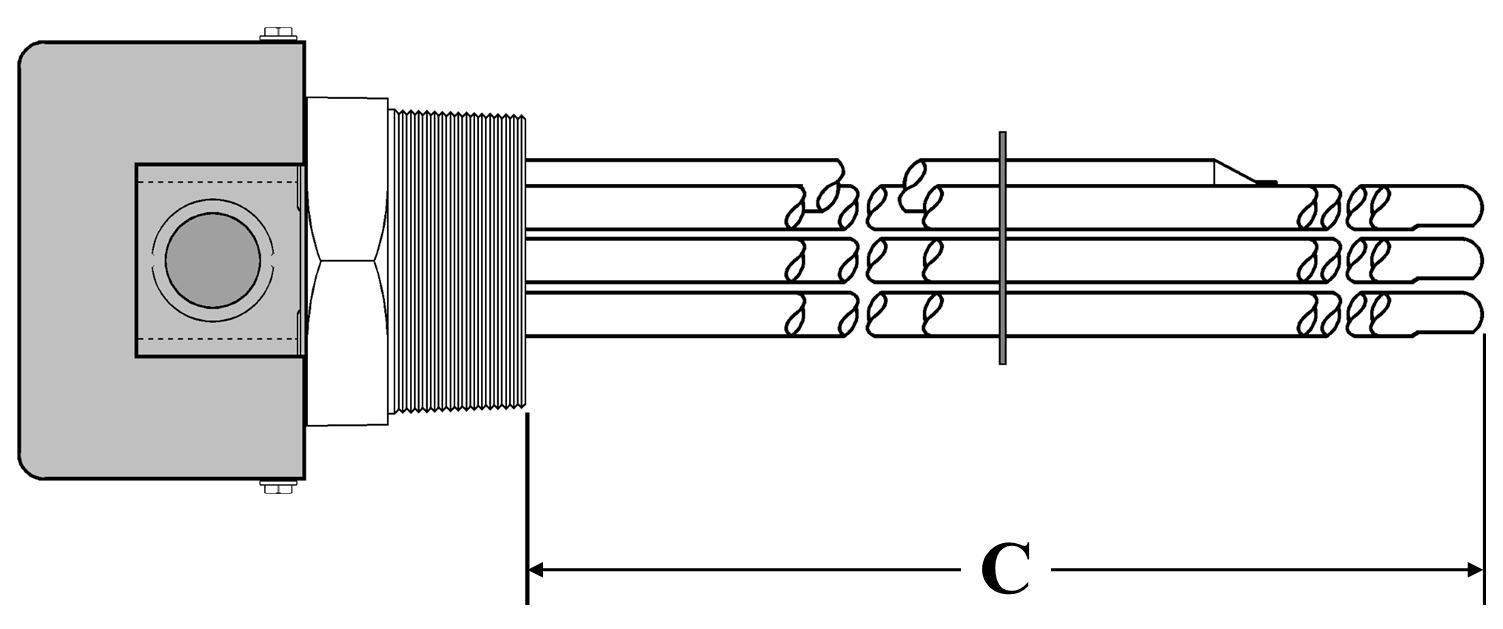

Drawing Number: 365A-1003-012
Incoloy Sheath Elements With 2-1/2" NPT Stainless Steel Plug:
If in doubt about which materials are required or best-suited for your application, please contact us at 1-724-872-5007 or rheinhold@thermcoil.com.
- INCOLOY® Sheath with Stainless Steel Screw Plug (Nickel Brazed or Welded): Our AA-SSN models with 45-55 watt density (W/IN.²) are suitable for clean water and corrosive liquids, such as process water with less than 6% alkaline or acid content; up to 2% caustic solutions. Also suitable for demineralized or deionized water.
Unregulated (No thermostat):
- If you need this type of element but with temperature control, please see our EAA-SSN Models.
Enclosure:
- NEMA 1, General Purpose Enclosure: the default enclosure type.
- Alternate Enclosures Are Available (Contact Us!):
● Weather-Resistant Enclosures
● Explosion-Resistant Enclosures (Also Dust & Weather-Resistant)
General Information:
- 5000W @ 480V 3-Phase
- Includes Thermowell: accommodates up to 3/8" DIA. sensing bulb.
- Screw plug immersion heaters must be fully covered by your liquid to prevent heater failure. (Other medium applications are possible, but require factory consultation.)
- All 240V models have the option to be operated at 208 VAC with a 25% reduction in wattage rating.
Technical Specifications
- Element Sheath Material: Incoloy 800
- Quantity Of Elements: 3
-
Immersion Length: 13" (C Dim.)
-
Terminal Connections: #10-32 Stud Terminals & Includes (3x) 7" Lead Wires
- Screw Plug Size: 2-1/2" NPT
- Screw Plug Material: Stainless Steel
- Enclosure Type: NEMA 1 General Purpose
- Thermowell Accommodates Sensing Bulb Size: .375" DIA.
- Temperature Control Type: None
- Temperature Control Range: N/A
