2000W @ 120V 7-5/16" Immersion Length D-120-UC Model 1" Straight Thread Screw-In Style Copper Alloy Replacement Water Heater Elements

Description

• Model Number: D-120-UC
• Drawing Number: 356L-1360-011B
• 2000W @ 120V With a 7-5/16" Immersion Length and a 1" Straight Thread Screw Plug
• Low Watt Density With Superior Quality .315" Diameter Plated Copper Sheath Elements: Unlike many others, our replacement elements use commercial-grade diameter for long life.
• Universal 1" NPSM Straight Thread Screw-in style installation.
•  Element includes required gasket.
• Fits most major brand name electric water heaters: Check your manual for required dimensions, wattage, and voltage requirements.

Part Number Cross Reference

A.O. Smith / APCOM / Emerson-Backer: SG-1203L, 048666-501, RC-02202012-LW, 042283-012-LW

Technical Specifications

• Mount Style: 1" NPSM Screw-In
• Element Sheath Material: Plated Copper
• Quantity Of Elements: 1

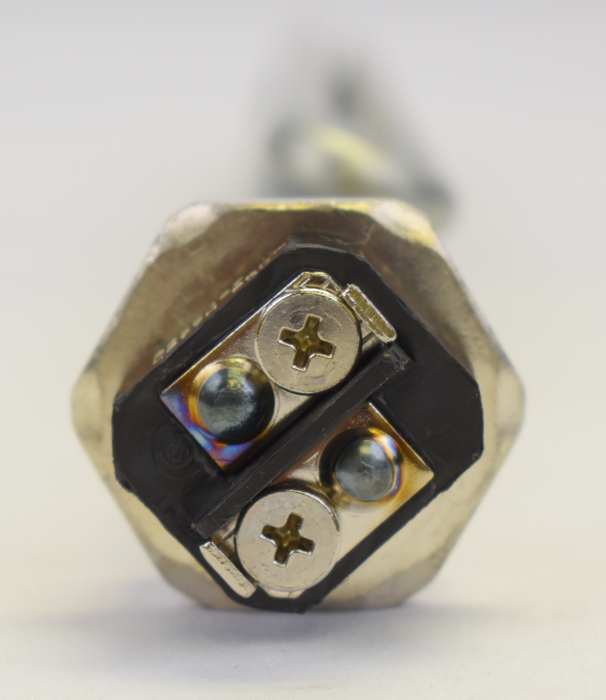

 Note: Image is representative of the series, but the immersion length depicted may vary from specific models.

Therm Coil MFG. Co. is not affiliated with A.O. Smith, APCOM, Emerson-Backer EHP or any of their affiliates.

 We do not assert nor imply that any product sold on this page is in any way an OEM product.
