Athena Series 88: 0° to 300°F Electronic Temperature Controller Within NEMA 1 Enclosure and Case Mounted Set-Point

Therm Coil Drawing No.: 337T-1220-007       Therm Coil Model No: TCE-88-300JE

Description

   This model comes within a NEMA 1 rated enclosure that can be wall-mounted with the included hardware and has the temperature set-point mounted on the cover for convenient access.  It can be wired for either heating or cooling applications, has a temperature range of 0° to 300°F, and has a SPDT 30A relay rated for 120/240V use.

   The Athena Series 88 is a non-indicating temperature controller that can be used as a superior replacement for bulb and capillary controllers. The controller accepts thermocouple input, and offers a 20 Amp relay output.

Note: This unit does not include the thermocouple required for its operation.

• On-Off or Time Proportioning
• Failsafe on Open Sensor
• No Calibration Necessary
• 1% Accuracy
• Thermocouple Input
• Track Mounted
• Cooling Processes

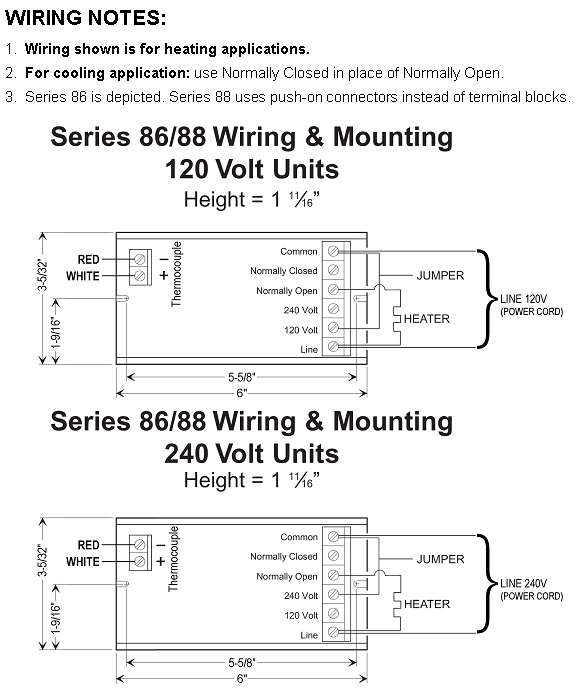

Technical Specifications

• Temperature Range: 0° to 300°F
• Setpoint: Single-turn, 270° rotation potentiometer (mounted to cover)
• Setpoint Resolution: 1/4% with remote potentiometer
• Calibration Accuracy: 1% at calibration points with remote potentiometer
• Ambient Temperature: 32°F to 130°F (0°C to 55°C)
• Humidity Tolerance: 5 to 95%, non-condensing
• Cold Junction Compensation: Internal electrical bridge
• Hysteresis/ Proportional Band: Thermocouple adjustable from hysteresis of 5° to proportional band of 25° RTD deadband is 3° to proportional band of 10°
• Thermocouple Break Protection: Output power off with open sensor
• Hysteresis/ Proportional Band: Thermocouple adjustable from hysteresis of 5° to proportional band of 25° RTD deadband is 3° to proportional band of 10°
• Thermocouple Break Protection: Output power off with open sensor
• Output: Type A Relay - S.P.D.T. 20 A @ 120/240 V
• Enclosure: Genral Purpose, NEMA 1
• Enclosure Dimensions: 7" H x5" W x 3" D
